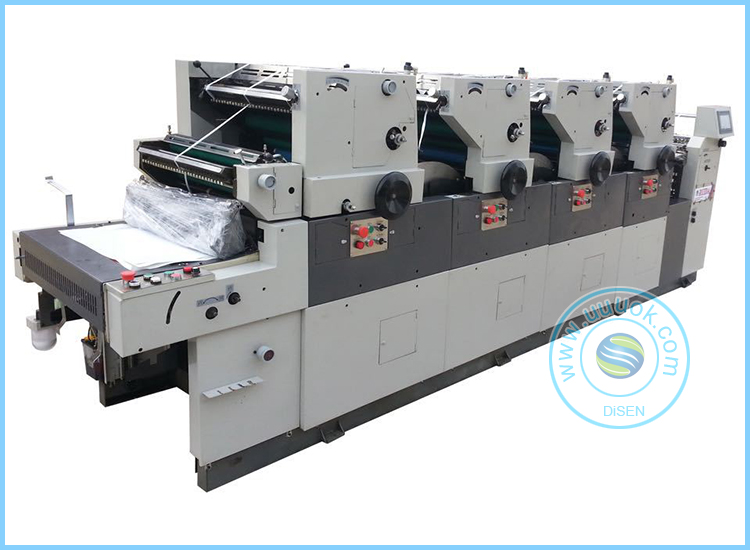

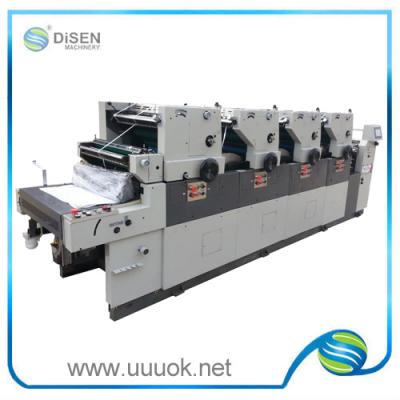

447/456/462NP Four-color offset printing machine

  • Model DSS-447/456/462NP
  • Contact us Mobile Buy

More products

Product Name : 447/456/462NP Four-color offset printing machine



The main technical parameters:

Model

DSS-447IINP

DSS-456IINP

DSS-462IINP

Maximum paper size

470*365mm

560*400mm

620*450mm

Maximum printing area

450*345mm

550*375mm

600*450mm

Paper type

28-300g/㎡

28-300g/㎡

28-300g/㎡

Printing speed

2000-7000张/小时

2000-7000张/小时

2000-7000张/小时

Plate size

470*395*0.15mm

560*420*0.15mm

610*480mm

Blanket size

470*420*1.95mm

560*460*1.95mm

620*475mm

Ink roller and Water stick Quantity

Three ink two water

Three ink two water

Three ink two water

Main motor

1.1kw

1.1kw

1.1kw

Air pump motor

0.55kw

0.55kw

0.55kw

Power

380V/50HZ

380V/50HZ

380V/50HZ

Machine size

4300*935*1490mm

4300*1000*1490mm

4800*1100*1600mm

Weight

2800kg

3200kg

3800kg
