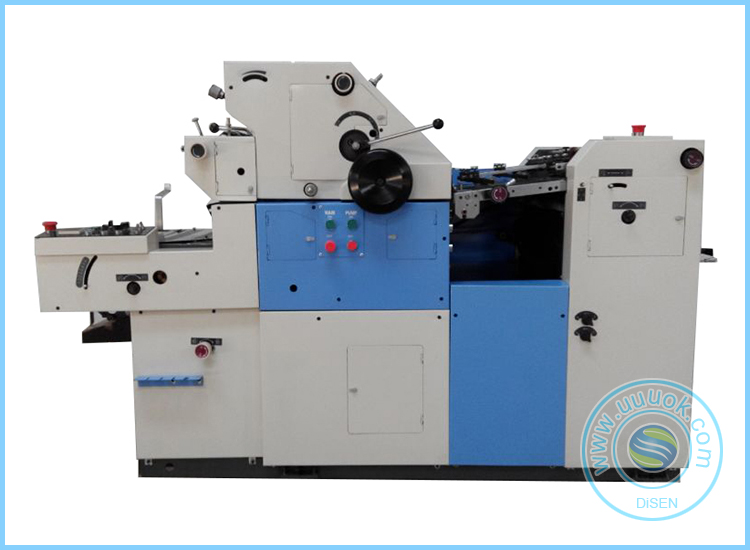

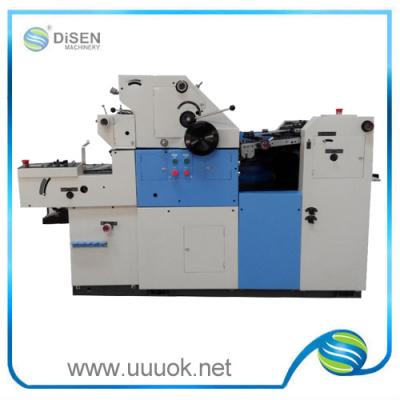

47/56/62NP single-color offset press

The new ink system: The main version of the three ink with two water, a more comprehensive system for the ink to maximize the printing to ensure that the full amount of ink supply and ink effects to ensure the completion of high-precision printing qual

  • Model DSS-47/56/62NP
  • Contact us Mobile Buy

More products

Product Name : 47/56/62NP single-color offset press



The new ink system:

The main version of the three ink with two water, a more comprehensive system for the ink to maximize the printing to ensure that the full amount of ink supply and ink effects to ensure the completion of high-precision printing quality.

NP coding system:

(NP), letterpress printing (resin version), portrait printing (resin printing), printing, printing, printing, printing and so on. , Transverse rice noodle pressure cutting multi-functional models.

Model

DSS-47IINP

DSS-56IINP

DSS-62IINP

Maximum paper size

470×365mm

560×400mm

620×450mm

Maximum printing area

450×345mm

550×375mm

605×440mm

Plate size

470×395×0.15 mm

560×417×0.15mm

620×480×0.15 mm

Blanket size

466×415×1.95 mm

560×460×1.95 mm

620×505×1.95 mm

Paper type

28-250g/ m2

Number of ink rollers

Main system 14 pieces(3 form ink rollers) NP system 6 pieces(2 form ink rollers)

Number of dampening rollers

5 pieces (2 form water roller)

Minimum space between codes

Vertical code :  vertical:71mm horizontal:48mm

Horizontal code:   vertical:  47mm horizontal:60mm

Registering mechanism

Roller type side lay

Printing speed

2000-8000 sheets/hour

Motor power

Main motor: 1.1KW/220V

Air pump motor: 0.55KW/220V

Machine size

2180×935×1540mm

2180×1035×1540mm

2350×1100×1420mm

Weight

680KG

740KG

1000KG
