Product Name :

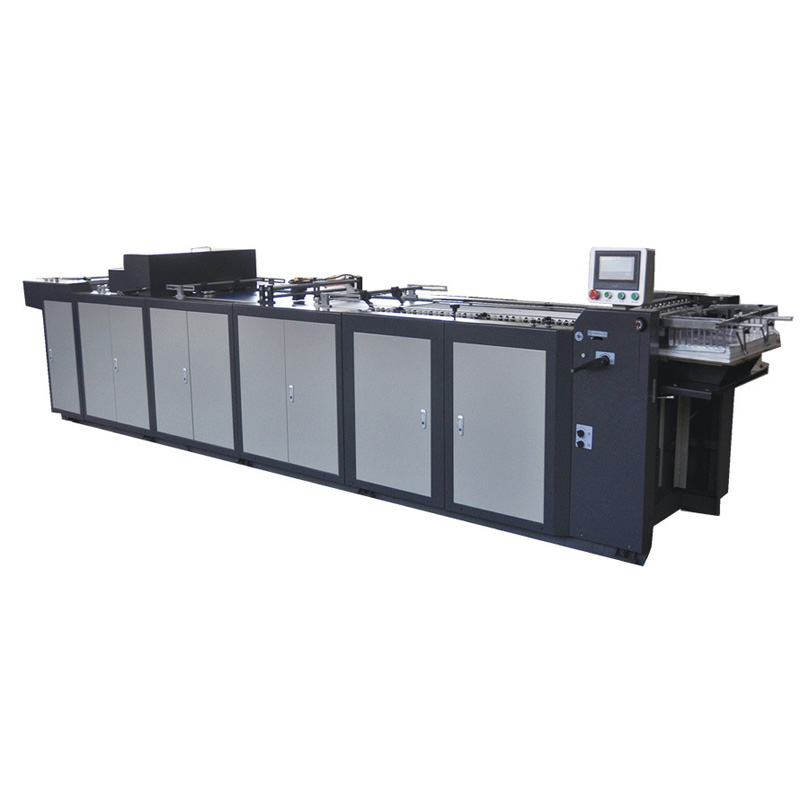

DSS-ZJ-620PM/780PMCoding platform

First, the performance characteristics of DSS-ZJ-620PM single sheet inkjet conveying platform:
DSS-ZJ-620PM single-sheet inkjet conveying platform is an ideal platform for printing single variable data such as electronic supervision codes, lottery tickets, tickets, vouchers, ballots, scratch cards, and anti-counterfeit codes. It consists of five parts: automatic paper conveying part, ball-type side pull fixed position part, vacuum adsorption coding part, infrared drying curing part, and automatic paper receiving part. This machine has the characteristics of smooth paper feeding, accurate positioning, high printing quality, fast curing speed, and neat paper collection. In particular, the machine adopts LED curing light source, which greatly reduces the power consumption and thermal radiation generated by the device, which makes the device structure more compact and reduces the equipment's footprint.
1) Automatic paper feeding part: It adopts the suction front of the printing machine, and the whole machine adopts PLC touch screen control, which is convenient for adjustment and detection.
2) Side gauge correction: inclined ball correction, accurate positioning.

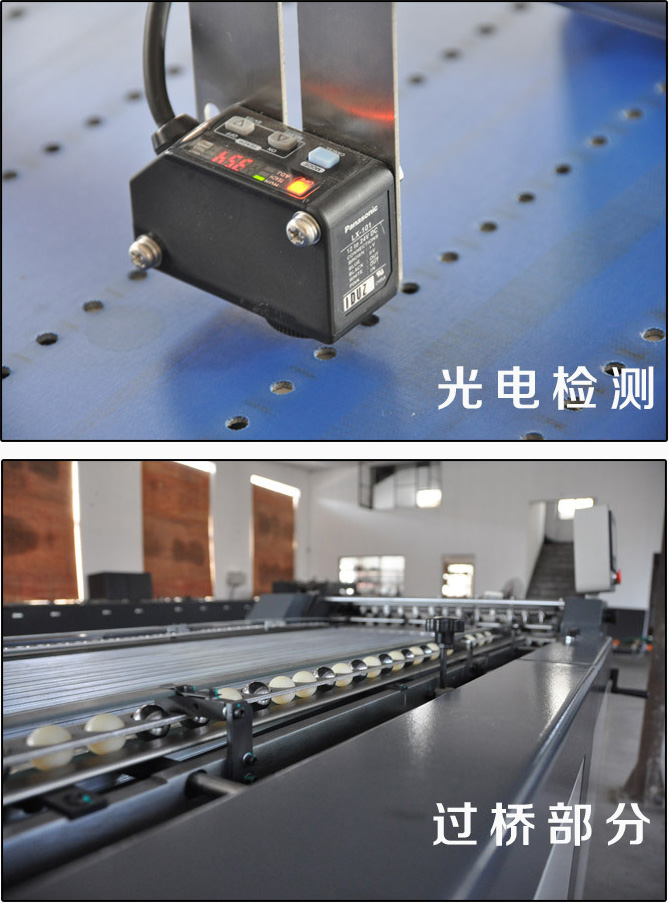

3) Coding platform: It adopts full-time suction synchronous belt conveying to make the paper conveying more stable, and the photoelectric positioning on the front and back is accurate.
4) LED UV curing part: fully sealed without light leakage. Water cooling method is used to ensure that the paper is cured at low temperature. Adopting advanced PLC control system, when the paper enters the platform, the light source can be turned on instantaneously, and it is in the standby state when there is no paper. Low power and long life.
5) Paper receiving section: adopts a pneumatic paper aligning mechanism to tidy up the paper, and the paper receiving table is equipped with an automatic lifting motor for easy operation.

Model: DSS-ZJ-620PM
Maximum paper size: 610 × 450mm
Minimum paper size: 297 × 210mm
Platform speed: 80m / min
Paper stack height: 700mm
Total power: 3.5Kw
UV lamp: 0.75KW
Applicable paper: 40-350g / m2
Weight: 1000kg
Dimensions: 5300 × 1150 × 1300mm
Specific data is subject to change without notice, subject to actual machine.
