Product details

Product Name :

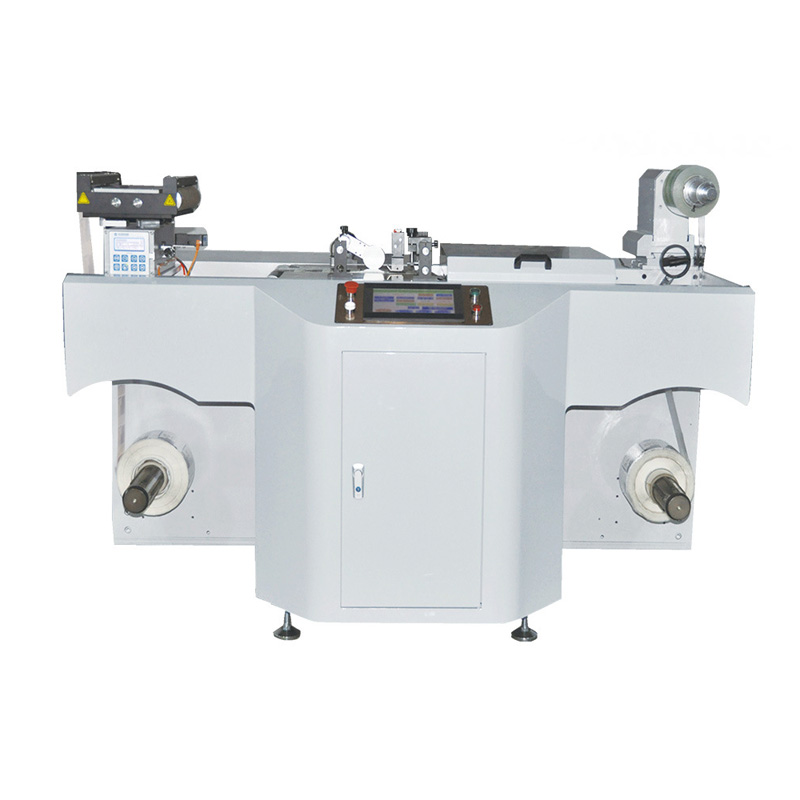

DSS-ZJ-320PMF Roll paper coding and laminating machine

Performance characteristics of DSS-ZJ-320PMF web paper coding and laminating machine:
This machine adds lamination function on the basis of DSS-ZJ-320PM web printing and conveying platform. It is mainly used for professional solutions of web digital printing variable digital and printed matter detection. Printing, label printing, etc.
1. The maximum paper speed is 200m / min; the printing effect is good and the efficiency is high.
2. Rewinding and unwinding: constant tension control; even paper force. ;
3. Correction: imported photoelectric detection and correction device, accurate positioning;
4. Code printing system: industrial-grade print head, professional control software can continuously print variable numbers, bar codes, graphics;
5. Drying: UV curing drying system is adopted; low energy consumption and fast curing. The coding and rewinding machine can choose the curing shutdown and general shutdown.
6. Lamination tension can be adjusted at any time to fully guarantee the quality of lamination.
7.The inkjet rewinding machine can be linked and self-locked with most inkjet printers.The communication between the inkjet printer and the rewinding machine is all performed by the switch signal (through the intermediate relay).
8. The man-machine interface is controlled by the touch screen, and the operation is convenient and intuitive, and the parameters can be set at any time according to needs.

Model: DSS-ZJ-320PMF
Maximum paper width size: 320mm
Minimum paper width size: 50mm
Format of coding platform: 340 * 400mm
Maximum speed: 200 m / min
Power: 6.1 kw
Applicable paper: 80-200 g / m2
Maximum roll diameter: 600mm
Weight: 1000kg
Overall dimensions: 1920 × 1260 × 1300mm
Specific data is subject to change without notice, subject to actual machine.
