Product Name : |

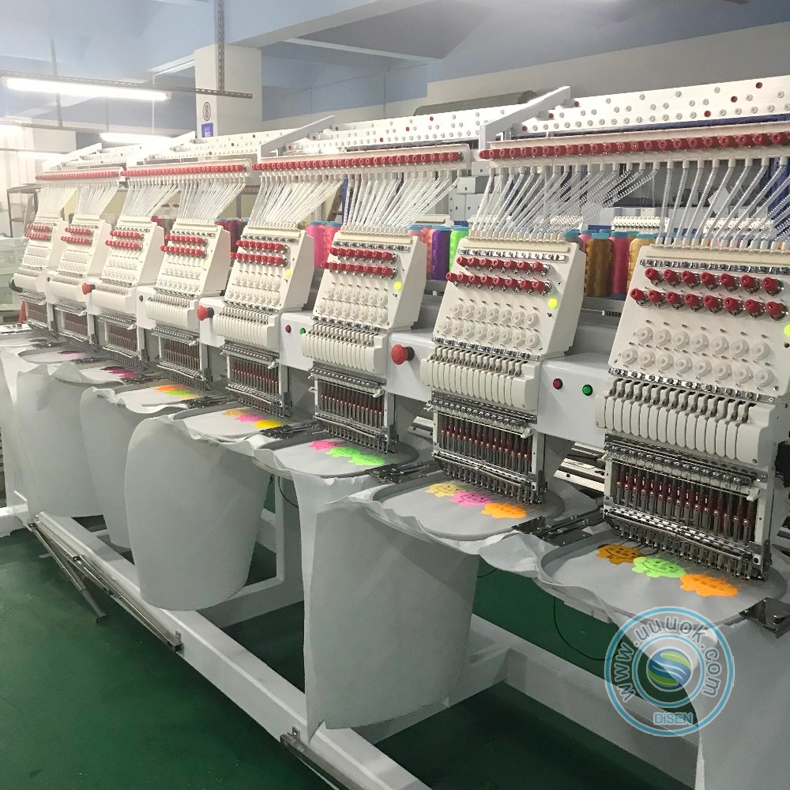

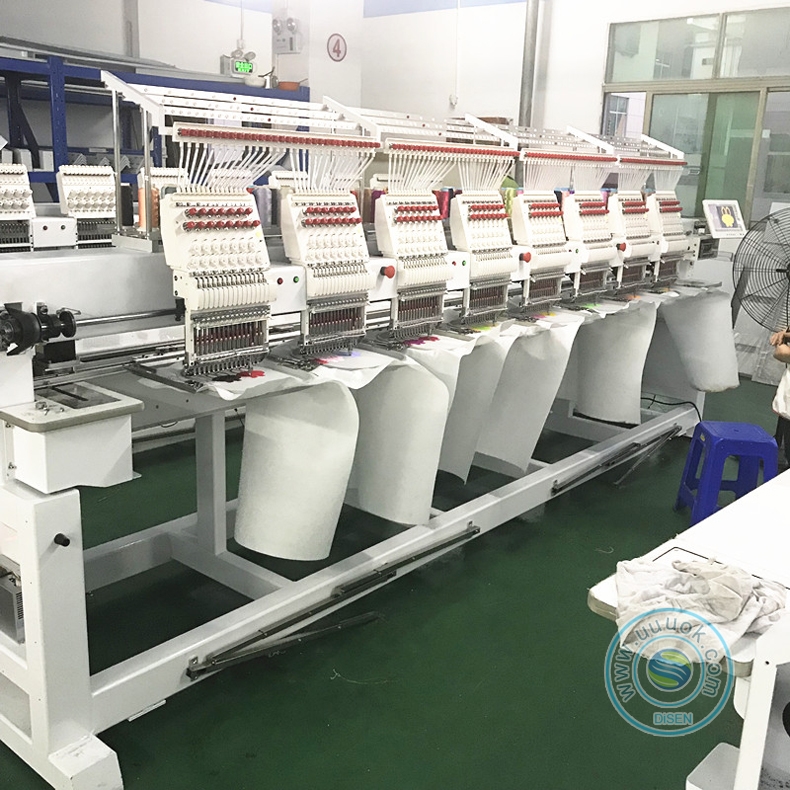

1508T 8 head 15 needles computer embroidery machine |
Head:8 head
Needle:15 needles
Weight:1500kg
Embroidery area:400*450mm
Max speed: 850SPM
Package size:4400*1250*1600mm
Control System:10 inch LCD display and touch screen showing real time stitching
Function:flat, cap, T-shirt, finished garments, logo, 3D embroidery
Package:Wooden Case
Motor:Servo and stepper motor
language:12 languages
Embroidery needles: Groz-beckert from germany
Rotary hook and bobbins: Japan Koban and Towa brand
MAIN FEATURE
1.Suitable for flat embroidery, cap embroidery and finished garments embroidery
2. Free changing between finished garments frame ang cap frame
3.Pattern auto rotation with 180°after changing cap frame unit
4.270° wide cap frame unit
5. Maximum speed 850 RPM
6. Color LCD display showing real time stitching
7. USB input port with fast data transmission and good compatibility
8. Auto star and color change,200times color change setted
9. Thread break detection
10. Pre-sew design trace capable
11. Memory size 2, 000, 000 stitches with 200 patterns
12. Emergency stop ,Prevent accidents
13. Electricity: AC86-264V input available
14. Built-in bobbin winder
15. Keeping current data or work when emergency stop or power off
16. Mending function. (back and skip stitches under controller)
17. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
18. Mainboard intergated into control panel protecting from dust or external force.
19. Lay-out of keys on panel is user-friendly.
20. Built-in Network
FULL COLOR CONTROL PANWL
1. 10" High Definition color LCD display and touch screen showing real time stitching
2. Simple HCI and operation mode Muti language supported,it includes Chinese,English,Russian,Dutch,Spanish,Portuguese,Turkish,German,Arabic,Thai,Vietnamese.
3. Main interface monitor machine condition any time.Quick manual trimming,color changing and main shaft inching operation.
Other Devices
Optional devices: (on each machine, two extra devices can be added, will be assembled on both sides of the machine)
Sequin device
Cording/Coiling device
Taping device
Bead Device
Boring Device
