Product Name : |

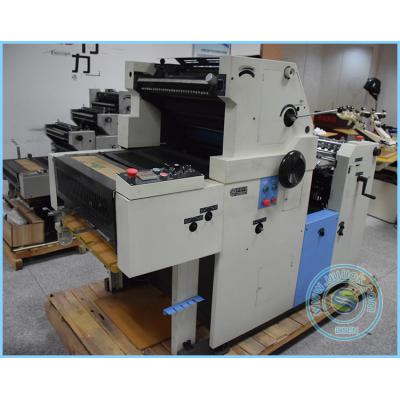

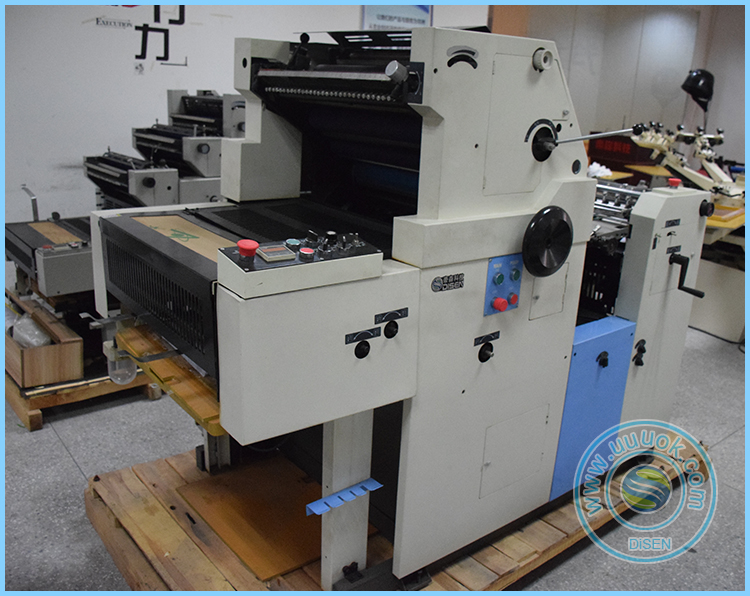

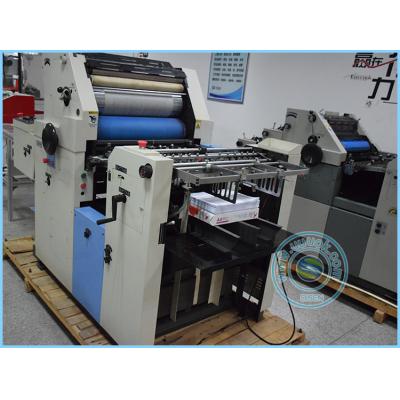

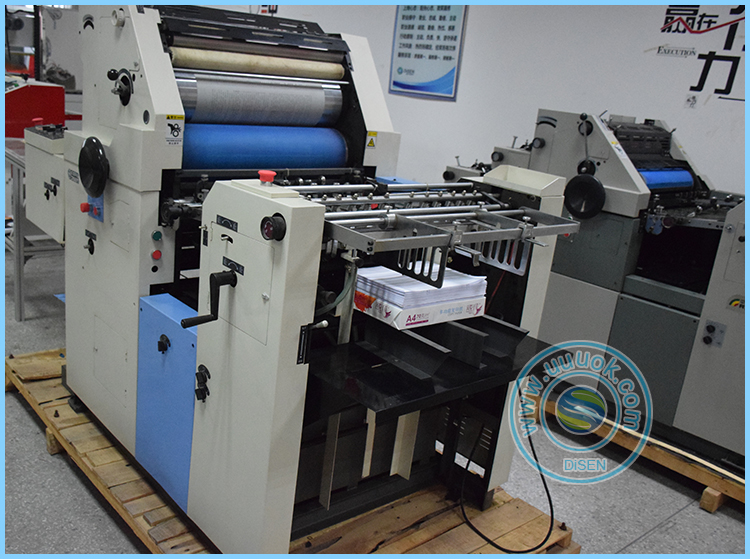

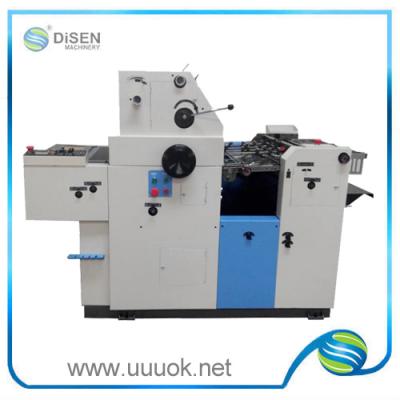

DSS-47A/56A/62A single-color offset press |
More information
Suitable for: schools, hospitals, small and
medium printing enterprises and individuals
Scope: for 28-250 grams of paper printing.
Typing paper, newsprint, kraft paper, coated paper. Particularly applicable to
school papers, such as the single-color single-color printing and a simple
four-color printing products.

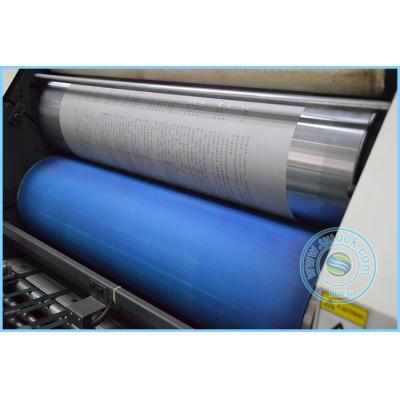

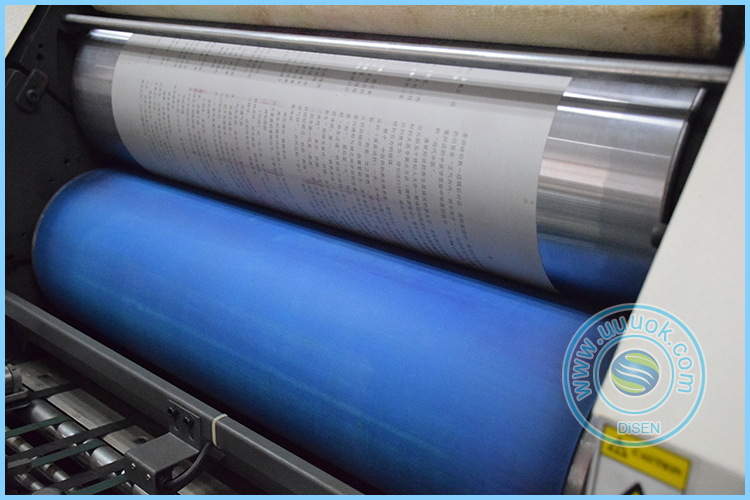

Main features: The new ink system, the ink
system for reasonable improvement, increased by the version of the ink roller
and the number of ink roller, ink distribution, to ensure the full version of
the printing needs of high-quality, large ink required for field printing, So
that short version of color printing is more simple, easy, comfortable, printed
products more beautiful colors, is a very economical and practical models.
Model
|
DSS-47II
|
DSS-56II
|
DSS-62II
|
Maximum paper size
|
470*365mm
|
560*400mm
|
620*450mm
|
Maximum printing area
|
450*345mm
|
550*375mm
|
605*440mm
|
Plate size
|
470*395*0.15 mm
|
560*417*0.15mm
|
620*480*0.15 mm
|
Blanket size
|
470*420*1.95 mm
|
560*460*1.95 mm
|
620*505*1.95 mm
|
paper type
|
28-250g/ m2
|
Number of ink rollers
|
Main system 14 pieces(3 form ink
rollers)
|
Number of dampening rollers
|
5 pieces (2 form water roller)
|
Registering mechanism
|
Roller type side lay
|
Printing speed
|
2000-8000 sheets/hour
|
Motor power
|
Main motor: 0.75KW/220V
Air pump motor: 0.55KW/220V
|
Machine size
|
1760*935*1340mm
|
1760*1035*1340mm
|
2000*1100*1420mm
|
Weight
|
560KG
|
660KG
|
900KG
|
Using
electronic preset counter, pre-printed volume, double-sheet controller can
effectively control the double, multi-sheet and non-stop state automatically
exclude double sheets, more than one. The height of the delivery platform is
automatically lowered, equipped with manual and automatic ink supply device and
various security devices, with automatic fault shutdown and fault display.

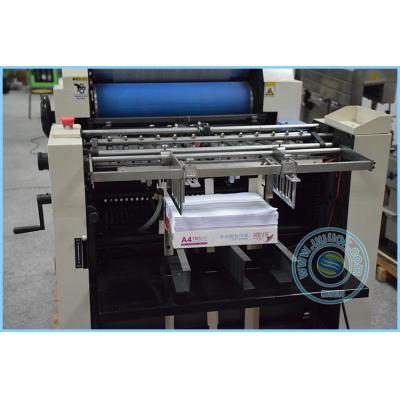

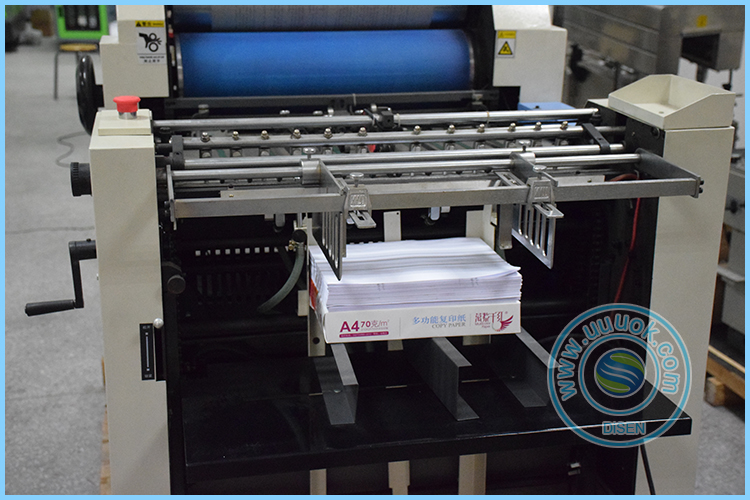

Using a separate suction-type vacuum pump to receive paper, with dusting
device, centralized oil, static elimination and other functions.
