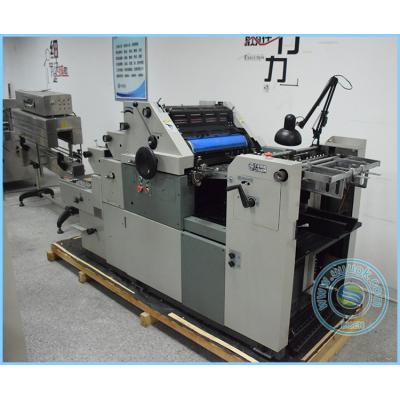

47/56/62NP2 single-color offset press

In addition to a monochrome printing function, the addition of multi-function NP system, using 120-degree open and close mode, automatic control dial code, coding, high degree of automation, all programmable PLC microcomputer control, really can not consi

  • Model DSS-47/56/62NP2
  • Contact us Mobile Buy

More products

Product Name : 47/56/62NP2 single-color offset press



More information

Doubles code series offset printing machine really realized the number zero distance

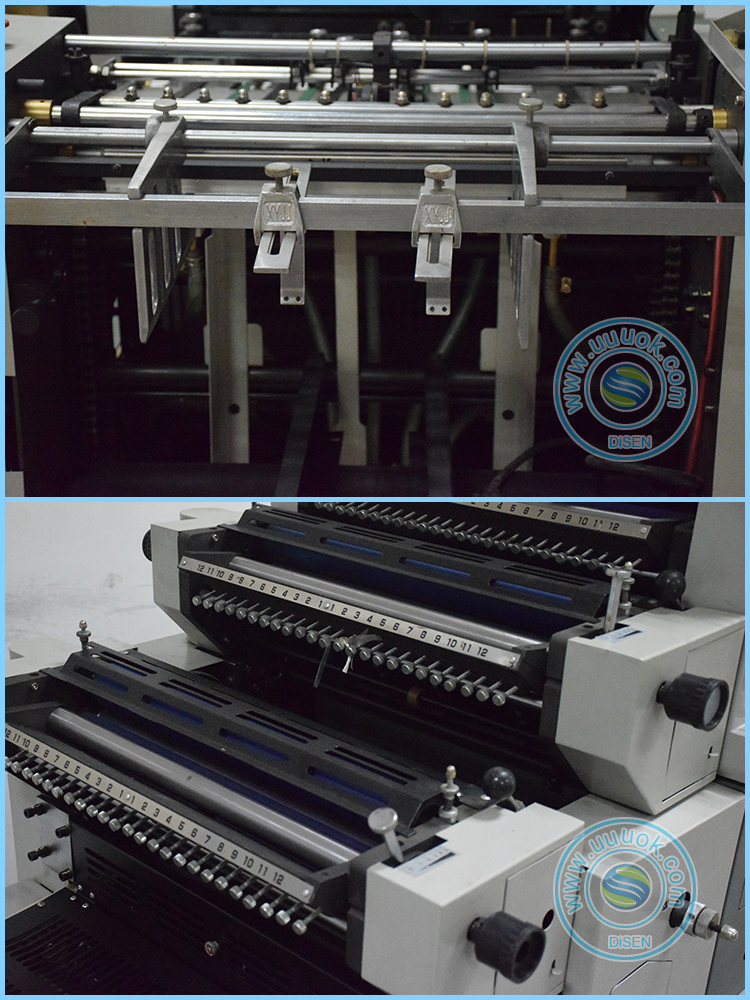

In addition to a monochrome printing function, the addition of multi-function NP system, using 120-degree open and close mode, automatic control dial code, coding, high degree of automation, all programmable PLC microcomputer control, really can not consider the number of distance, Complete lithography, a code, letterpress printing, vertical and horizontal rice noodle pressure cutting multi-functional models.


Model

DSS-47-2NP

DSS-56-2NP

DSS-62-2NP

Max. Paper Size

470*365mm

560*400mm

620*450mm

Max. Printing Size

450*345mm

550*345mm

605*440mm

Plate Size

470*395*0.15mm

560*417*0.15mm

620*480*0.15mm

Blanket Size

470*420*1.95mm

560*460*1.95mm

620*505*1.95mm

Paper Type

28-250g/ m2

Min. Space between codes

Vertical code : vertical:71mm  horizontal:48mm

Horizontal code: vertical:47mm   horizontal:60mm

Registering Mechanism

Roller type side lay

Printing Speed

2000-8000 sheets/hour

Power

Main motor:1.1KW/220V

Air pump motor:0.55KW/220V

Machine size

2400*935*1340mm

2400*1035*1340mm

2570*1100*1420mm

Weight

860KGS

990KGS

1100KGS
