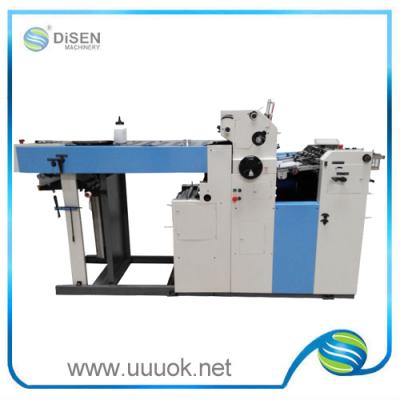

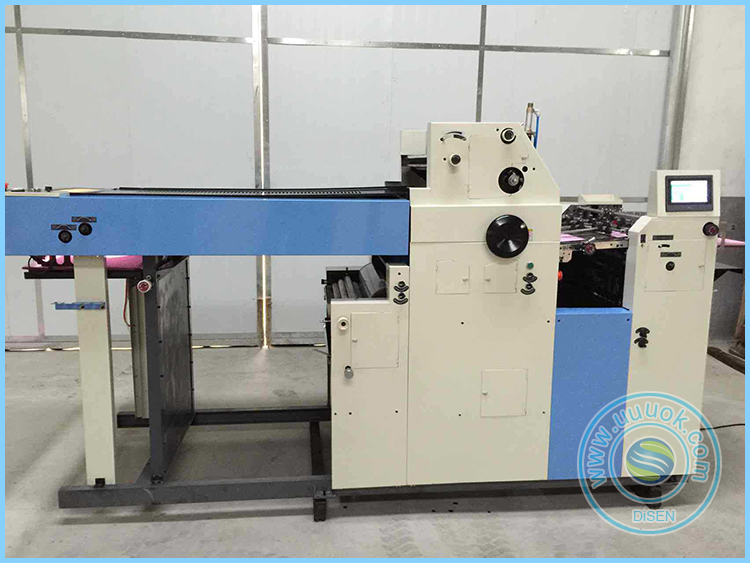

DSS-47/56/62H single-color offset press

Double-sided offset press with upper and lower unit six roller structure. As long as the paper through a homework, you can achieve positive, negative simultaneous printing.

  • Model DSS-47/56/62H
  • Contact us Mobile Buy

More products

Product Name : DSS-47/56/62H single-color offset press



Features:

1. Double-sided offset press with upper and lower unit six roller structure. As long as the paper through a homework, you can achieve positive, negative simultaneous printing.

2. High degree of automation

3. Heavy-duty machine structure

4. Integral cast iron wallboard

5. Horizontal feeding

6. Quick clip version

7. Frequency control, PLC microcomputer control

8. Photoelectric automatic clutch pressure

9. Motor stepless drive water supply, ink and water balance response quickly and easily controlled

10. Former non-stop dial fine fine left and right

11. Accurate positioning

12, under the plate cylinder plate about non-stop fine fine-tuning

13. Four rows of high-profile row of paper, to extend the delivery time, reduce the paper dip

14. Electrostatic treatment


Pneumatic control features:

The pressure between the printing plate cylinder, the impression cylinder and the blanket cylinder adopts the pneumatically combined pressure, which is easier to be damaged under the tie bar mode than the traditional electromagnet pull rod type structure. And the pressure stability, network clear, good reduction.


Technical Parameters:

Model

DSS-SM47

DSS-SM56

Max. paper size

470×365mm

560×400mm

Max. printing area

450×345mm

550×375mm

Plate size

470×395×0.15 mm

560×417×0.15 mm

Blanket size

470×420×1.95 mm

560×460×1.95 mm

Paper weight

40-120g/m2

No. of ink rollers

9 pieces (2 form ink rollers)

No. of dampening rollers

4 pieces(1 form dampening rollers)

Registering mechanism

Roller type side lay

Printing speed

2000-6000 sheets/hour

Motor power

Main motor1.5KW/220v

Air pump motor0.55kw/220v

Machine size

2300×858×1650mm

2300×958×1650mm

 Weight

1150KG

1350KG

Double-sided printing machine using the upper and lower unit six roller structure. As long as the paper through a homework, you can achieve positive, negative simultaneous printing. High degree of automation, heavy machine structure, the overall cast iron wall panels, cross-feed, quick splint, frequency control, PLC microcomputer control, photoelectric automatic clutch pressure, motor electrodeless drive water supply, ink balance response quickly and easily control; High-profile four rows of teeth row of paper, to extend the delivery time to reduce the paper dip Paper fan, electrostatic treatment, all electromagnets energy-saving design, energy-saving significantly.


双面印胶机采用上、下机组六滚筒结构。只要通过一次的走纸作业,即可实现正面、反面同时印刷。机器自动化程度高,重型机结构,整体铸铁墙板,横进纸,快速夹板,变频调速,PLC微电脑控制,光电自动离合压,电机无极驱动给水,水墨平衡响应迅速易控;前规不停机表盘精细左右微调;定位精确;下机组印版滚筒左右表盘不停机密细微调;下机组印版滚筒左右表盘不停机细密微调;高台四排牙排收纸,延长收纸时间,减少纸张沾连落纸风扇,静电处理,所有电磁铁节能设计,节能显著。


性能特点:

1.双面胶印机采用上、下机组六滚筒结构。只要通过一次的走纸作业,即可实现正面、反面同时印刷。

2.机器自动化程度高

3.重型机结构

4.整体铸铁墙板

5.横进纸

6.快速夹版

7.变频调速,PLC微电脑控制

8.光电自动离合压

9.电机无级驱动给水,水墨平衡响应迅速易控

10.前规不停机表盘精细左右微调

11.定位精确

12.下机组印版滚筒左右表盘不停机精细微调

13.高台四排牙排收纸,延长收纸时间,减少纸张沾连

14.静电处理


气动控制功能特点:

印版滚筒、压印滚筒与橡皮滚筒之间的压力采用气动合压,较传统电磁铁拉杆式结构,解决了拉杆模式下易损坏的情况。且压力稳定,网点清晰,还原性好。


技术参数:

机型Type

ZJ47LIIM


最大用纸尺寸

Max. paper size

470×365mm

560×400mm

最大印刷面积

Max. printing area

450×345mm

550×375mm

印版尺寸

Plate size

470×395×0.15 mm

560×417×0.15 mm

橡皮布尺寸

Blanket size

470×420×1.95 mm

560×460×1.95 mm

纸张类型

Paper weight

40-120g/m2

墨辊数量 No. of ink rollers

9根(靠版墨辊2根)

9 pieces (2 form ink rollers)

水辊数量 No. of dampening rollers

4根(靠版水辊1根)

4 pieces(1 form dampening rollers)

套准机构

Registering mechanism

滚轮式侧拉规 Roller type side lay

印刷速度  Printing speed

2000-6000张 /小时 2000-6000 sheets/hour

电机功率  Motor power



主电机1.5KW/220v

Main motor1.5KW/220v

气泵电机0.55kw/220v

Air pump motor0.55kw/220v

机械尺寸

Machine size

2300×858×1650mm

2300×958×1650mm

重量

 Weight

1150KG

1350KG
