47A/56A/62A-2 Two-color offset press_Offset Machine_Printing Machine

Product details

Product Name :

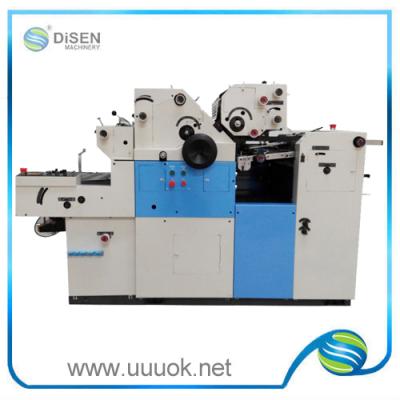

47A/56A/62A-2 Two-color offset press

Technical Features:

Two-color satellite color offset press is in any one color, monochrome coding machine to install two-color head, in addition to his monochrome, all the advantages of single-color coding machine, the two-color head along the mainframe parts and free link link Separation, simple and convenient. The effective realization of the two-color paper sets of red, playing yards, indentation time to complete and improve work efficiency.

Technical Parameters:

Model	DSS-47A-2	DSS-56A-2	DSS-62A-2
Max. Paper Size	470*365mm	560*400mm	620*450mm
Max. Printing Size	450*345mm	550*345mm	605*440mm
Plate Size	4703950.15mm	5604170.15mm	6204800.15mm
Blanket Size	4704201.95mm	5604601.95mm	6205051.95mm
Paper Type	28-250g/ m2
Min. Space between codes	Vertical code :vertical:71mm horizontal:48mm Horizontal code: vertical:47mm horizontal:60mm
Registering Mechanism	Roller type side lay
Printing Speed	2000-8000sheets/hour
Power	Main motor:1.1KW/220V
Power	Air pump motor:0.55KW/220V
Machine size	21809351340mm	218010351340mm	235011001420mm
Weight	720KGS	770KGS	1060KGS

技术特点：

卫星式双色胶印机是在任一款单色、单色打码机上加装双色头，他除具有单色、单色打码机的所有优点外，双色机头可沿导轨与主机部分自由连结和分离，简单方便。有效实现了双色票据套红、打码、压痕一次完成，提高了工作效率。

技术参数：

型号Model	47NPS	56NPS	62NPS
最大用纸尺寸Max. Paper Size	470*365mm	560*400mm	620*450mm
最大印刷面积Max. Printing Size	450*345mm	550*345mm	605*440mm
印版尺寸 Plate Size	4703950.15mm	5604170.15mm	6204800.15mm
橡皮布尺寸 Blanket Size	4704201.95mm	5604601.95mm	6205051.95mm
纸张类型 Paper Type	28-250g/ m2
号码最小间距 Min. Space between codes	竖码：纵向71mm 横向:48mmVertical code :vertical71mmhorizontal48mm 横码：纵向47mm 横向:60mmHorizontal code: vertical47mmhorizontal60mm
套准机构 Registering Mechanism	轮滚式侧拉规 Roller type side lay
印刷速度 Printing Speed	2000-8000张/小时 2000-8000sheets/hour
电机功率 Power	主电机1.1KW/220V Main motor1.1KW/220V
电机功率 Power	气泵电机0.55KW/220V Air pump motor0.55KW/220V
机械尺寸 Machine size	21809351340mm	218010351340mm	235011001420mm
重量 Weight	720KGS	770KGS	1060KGS
