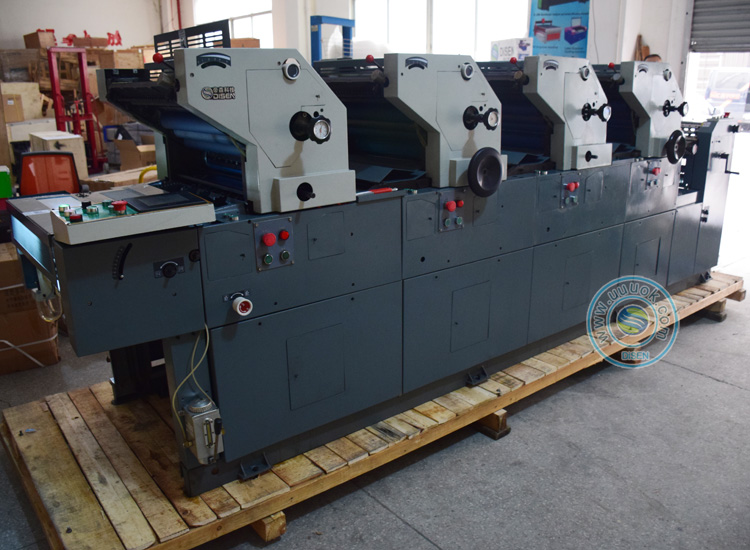

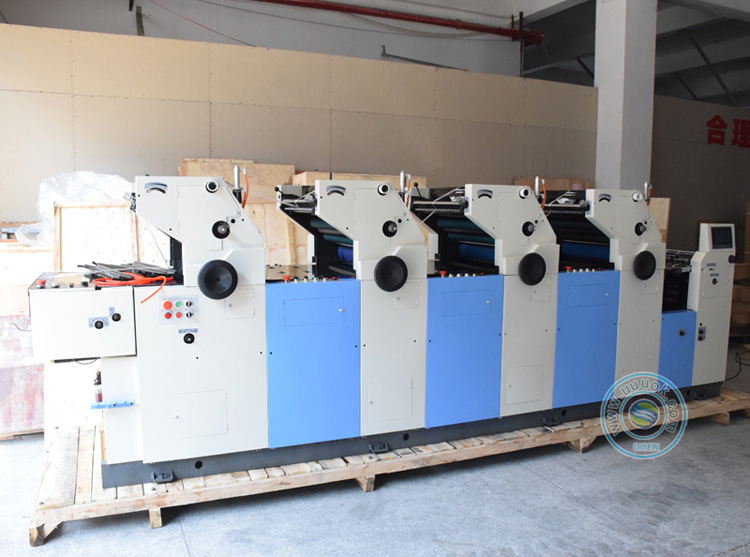

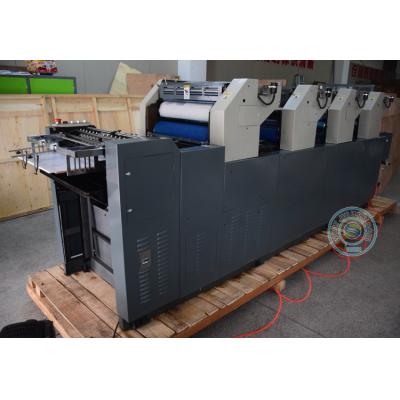

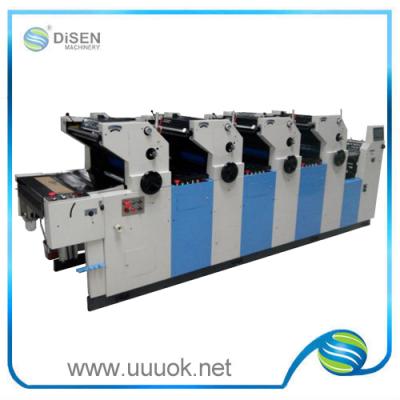

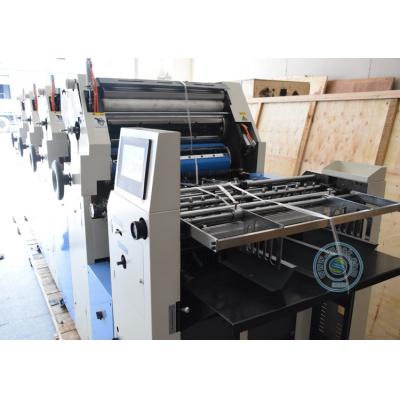

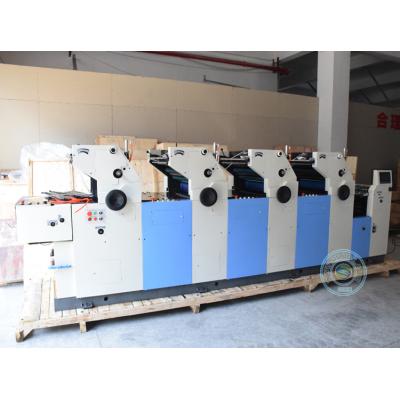

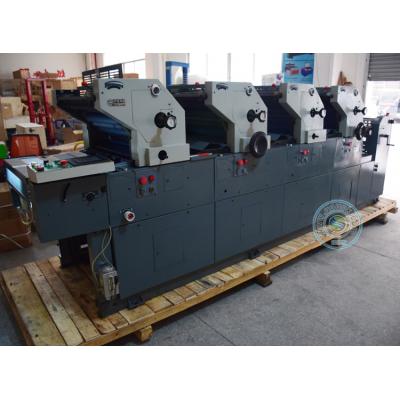

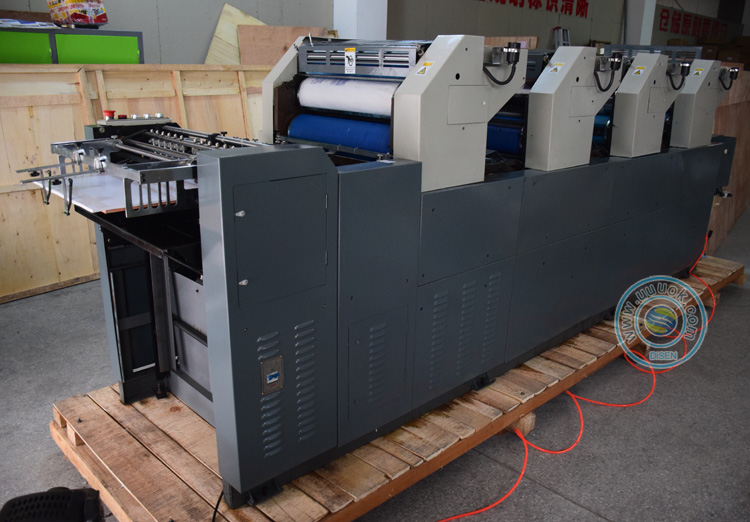

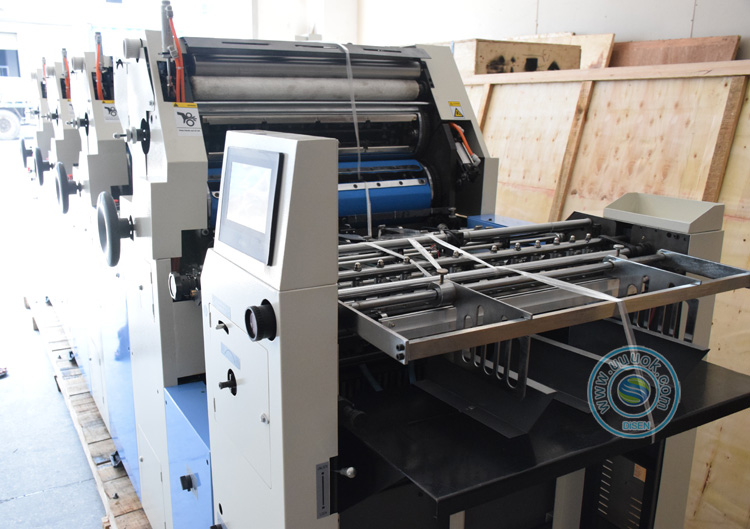

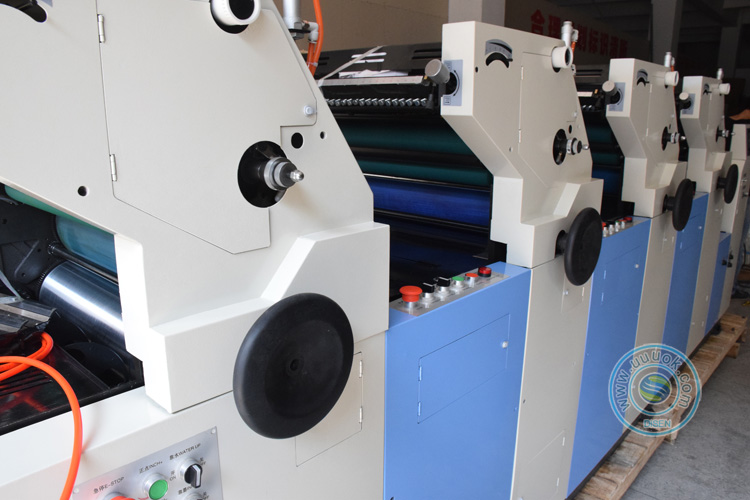

| Product Name : | 447/456/462 Four-color offset printing machine |
The main technical parameters:
|
Model |
DSS-447IINP |
DSS-456IINP |
DSS-462IINP |
|
Maximum paper size |
470*365mm |
560*400mm |
620*450mm |
|
Maximum printing area |
450*345mm |
550*375mm |
600*450mm |
|
Paper type |
28-300g/㎡ |
28-300g/㎡ |
28-300g/㎡ |
|
Printing speed |
2000-7000张/小时 |
2000-7000张/小时 |
2000-7000张/小时 |
|
Plate size |
470*395*0.15mm |
560*420*0.15mm |
610*480mm |
|
Blanket size |
470*420*1.95mm |
560*460*1.95mm |
620*475mm |
|
Ink roller and Water stick Quantity |
Three ink two water |
Three ink two water |
Three ink two water |
|
Main motor |
1.1kw |
1.1kw |
1.1kw |
|
Air pump motor |
0.55kw |
0.55kw |
0.55kw |
|
Power |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Machine size |
4300*935*1490mm |
4300*1000*1490mm |
4800*1100*1600mm |
|
Weight |
2800kg |
3200kg |
3800kg |
