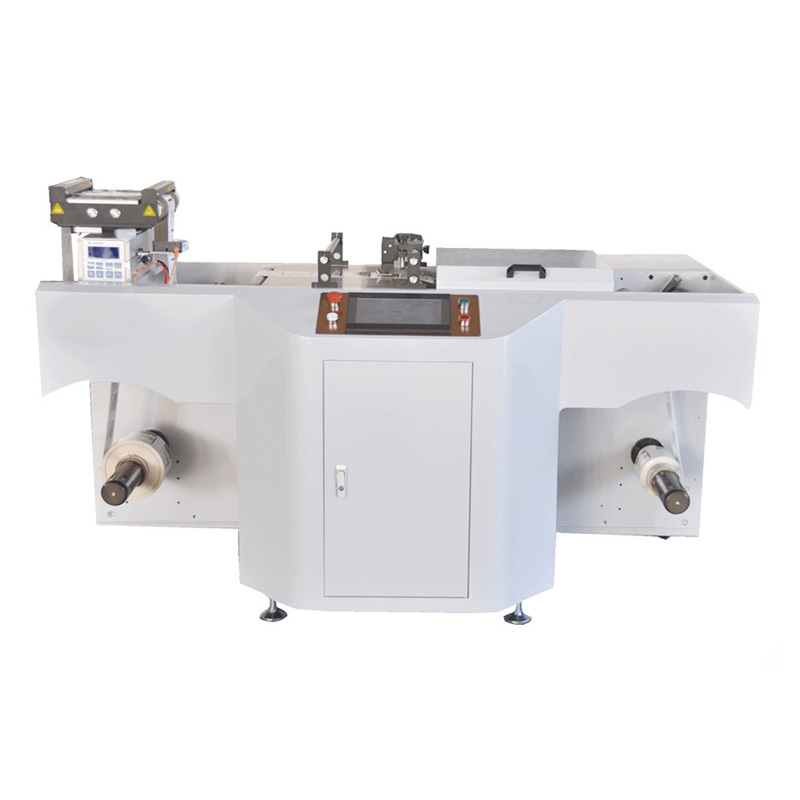

DSS-ZJ-320PM Roll paper inkjet conveying platform

最大用纸宽度尺寸:320mm
最小用纸宽度尺寸:50mm
喷码平台幅面:340*400mm
最高速度:200 m/min
功率:6 kw
适用纸张:80-200 g/m2

  • Model DSS-ZJ-320PM
  • Contact us Mobile Buy

More products

Product Name : DSS-ZJ-320PM Roll paper inkjet conveying platform



Performance characteristics of DSS-ZJ-320PM web code printing conveyor platform:
This machine is mainly used for professional solutions for printing variable digital and printed matter on web, and is suitable for coding in the fields of self-adhesive labels, lottery tickets, tickets, tickets and other fields.
1. The maximum paper speed is 200m / min; the printing effect is good and the efficiency is high.
2. Rewinding and unwinding: constant tension control; even paper force.

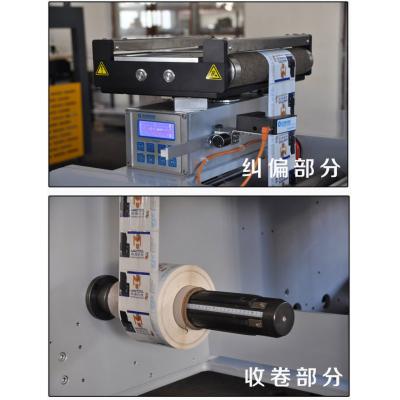

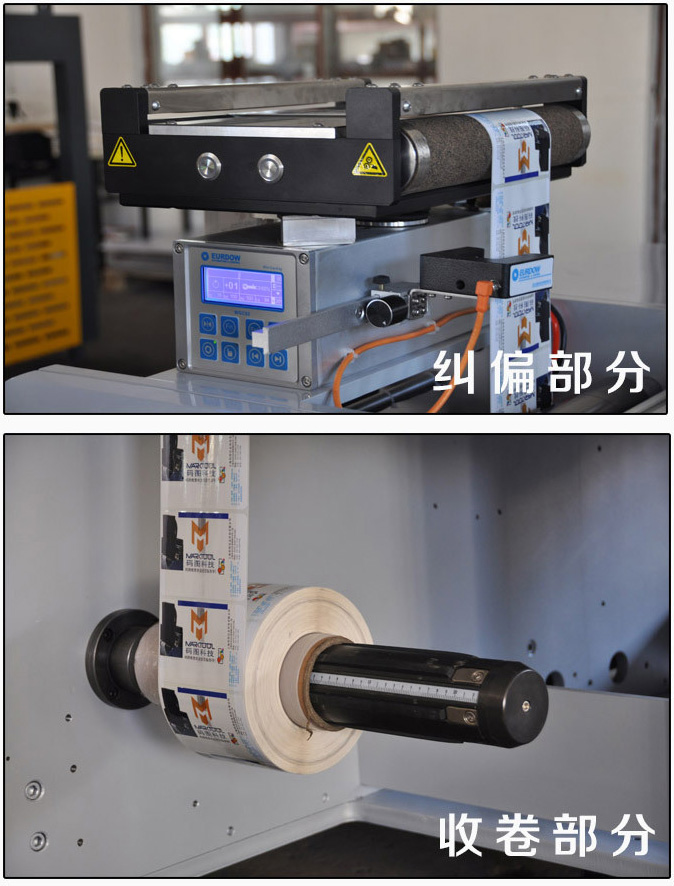

3. Correction: imported photoelectric detection and correction device, accurate positioning;
4. Code printing system: industrial-grade print head, professional control software can continuously print variable numbers, bar codes, graphics;
5. Drying: UV curing drying system is adopted; low energy consumption and fast curing. The coding and rewinding machine can choose the curing shutdown and general shutdown.
6.The inkjet rewinding machine can be linked and self-locked with most inkjet printers.The communication between the inkjet printer and the rewinding machine is all performed by switching signals (via intermediate relays).


Model: DSS-ZJ-320PM
Maximum paper width size: 320mm
Minimum paper width size: 50mm
Format of coding platform: 340 * 400mm
Maximum speed: 200 m / min
Power: 6 kw
Applicable paper: 80-200 g / m2
Maximum roll diameter: 600mm
Weight: 1000kg
Overall dimensions: 1920 × 1260 × 1200mm
Specific data is subject to change without notice, subject to actual machine.
