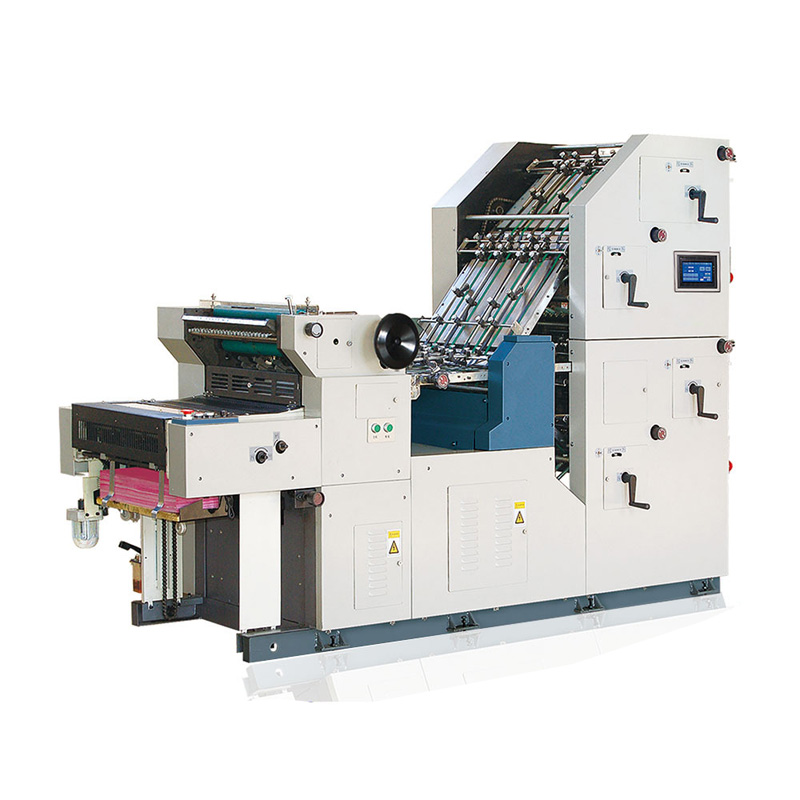

DSS-ZJ47DM-4PY Six open collating coder

本机主要针对印好的票据联单等印刷品进行配页的同时进行打码,不仅提高了生产效率,还减少了不必要的浪费。 每组供纸单元均装有超声波检测,故除实现边配页边打码的功能外,还可以实现四组供纸单元同时配页的功能。

  • Model DSS-ZJ47DM-4PY
  • Contact us Mobile Buy

More products

Product Name : DSS-ZJ47DM-4PY Six open collating coder



DSS-ZJ47DM-4PY performance characteristics:
DSS-ZJ47DM-4PY uses an independent coding unit, which makes the structure of the whole machine more compact and easier to operate.
This machine is mainly used for coding and printing at the same time as printing the printed receipts and other printed documents, which not only improves production efficiency, but also reduces unnecessary waste.
Each group of paper feeding units is equipped with ultrasonic detection, so in addition to the function of arranging and coding while arranging pages, it can also realize the function of four groups of paper feeding units simultaneously arranging pages.
Features of pneumatic control function:
The pressure between the printing plate cylinder, the impression cylinder and the rubber cylinder is pneumatically combined. Compared with the traditional electromagnet rod structure, it solves the situation of easy damage in the rod mode. And the pressure is stable, the online store is clear, and the reduction is good.

技术参数:

机型Type

DSS-ZJ47DM-4PY

最大用纸尺寸

Max. paper size

470×365mm

最小用纸尺寸

Min. paper size

210×210mm

纸张类型Paper weight

28-157g/m2

打码墨辊数量

No. of ink rollers

6根(靠版2根)

6pcs ink rollers(2pcs form ink rollers)

速度

Speed

2000-6000张/小时     2000-6000sheets /hour

号码最小间距

Min. space between codes

竖码:纵向71mm 横向 48mm

Vertical Number: vertical:71mm,horizontal:48mm

横码:纵向 47mm  横向 60mm

Horizontal Number: vertical:47mm,horizontal:60mm

电机功率Motor power

主电机 1.5KW/220V

气泵电机:0.55KW/220V×4台

Main motor:1.5KW/220V

Pump motor:0.55KW/220V ×4SETS

机器尺寸Machine size

2600×935×1680mm

重量Weight

1400KG
