Product Name : |

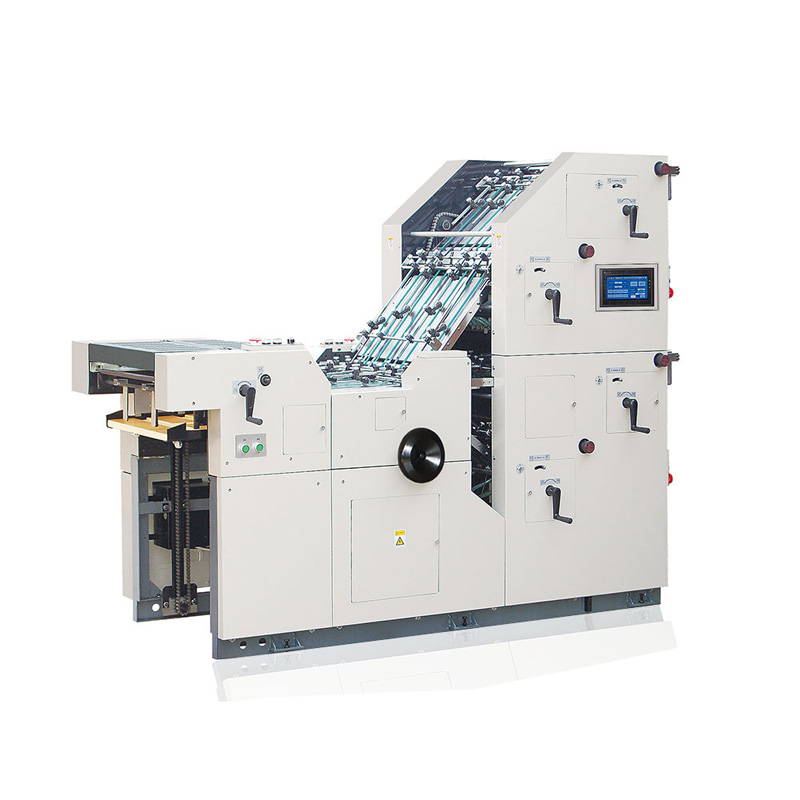

DSS-ZJ47-4PY Automatic sorting machine |
DSS-ZJ47-4PY performance characteristics:
DSS-ZJ47-4PY has the performance characteristics of the paper feeding unit of the collating and coding printer, and each group of paper feeding units is equipped with ultrasonic testing to fully ensure the accuracy of collating.
This model has a compact structure and a unique paper receiving structure, which fully guarantees the neatness of the paper and a large amount of paper storage, which reduces the preparation time and improves the production efficiency.
The reasonable structure design makes the paper conveying more stable, the collating speed is fast, the efficiency is high, the labor is saved, the delivery time is fully guaranteed, and the collating work becomes easier.
Features of pneumatic control function:
The pressure between the printing plate cylinder, the impression cylinder and the rubber cylinder is pneumatically combined. Compared with the traditional electromagnet rod structure, it solves the situation of easy damage in the rod mode. And the pressure is stable, the online store is clear, and the reduction is good.
技术参数:
机型Type
|
DSS-ZJ47-4PY
|
最大用纸尺寸
Max. paper size
|
470×365mm
|
最小用纸尺寸
Min. paper size
|
210×210mm
|
纸张类型Paper
weight
|
28-157g/m2
|
打码墨辊数量
No. of ink rollers
|
6根(靠版2根)
6pcs ink rollers(2pcs form ink rollers)
|
速度
Speed
|
2000-6000张/小时
2000-6000sheets /hour
|
号码最小间距
Min. space between codes
|
竖码:纵向71mm 横向 48mm
Vertical Number: vertical:71mm,horizontal:48mm
横码:纵向 47mm 横向 60mm
Horizontal Number: vertical:47mm,horizontal:60mm
|
电机功率Motor
power
|
主电机 1.1KW/220V
气泵电机:0.55KW/220V×4台
Main motor:1.1KW/220V
Pump motor:0.55KW/220V ×4SETS
|
机器尺寸Machine
size
|
2200×935×1680mm
|
重量Weight
|
600KG
|
