高速干式复合机

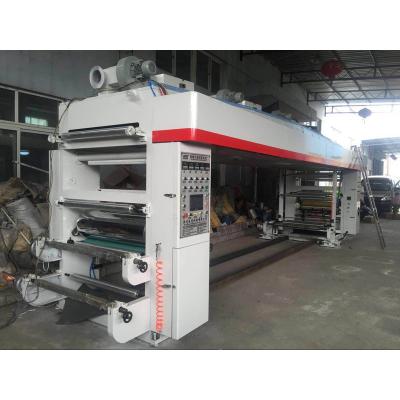

LM-A 600 Dry Type Laminating machine
Technical Reference
1. gluing form: directly Anilox roller gluing
2. compound type：Dry laminating machine
3. compound base material：plastic film，BOPP，MPET，Nylon，PE：25-150um aluminum foil：7-30，paper：30-150g/m
4. machinery speed ：120m/min
5. Max. compound speed ：100 m/min
6. Max. Base material width： 600mm
7. Double frequency conversion motor drive
 Double frequency converter speed control
 PLC Control System
8. Max.unwinding diameter：600mm
9. Max.rewinding diameter:  650mm
10. The gluing anilox roll diameter：160mm
11. compound steel roller diameter：320mm
12. The base material roller core diameter ：76mm
13. machinery power: 68kw
14. machinery weight:  6000kg
(1)Mechanical configuration：
frist unwinding device
Photoelectric correction system
Max unwind diameter ：600mm
Magnetic Powder Brake
Specification of paper core ：76mm
Base material around to adjust ：20mm
airshaft unwinding
(2) second unwinding device
Up and down double unwinding structure
yuanyang membrane is available
Max unwind diameter   600mm
Magnetic Powder Brake
Specification of paper core  76mm
Specification of paper core   20mm
airshaft unwinding
(3) wrap-up
Max. Diameter rewinding diameter  650mm
rewinding motor, torque motor
Specification of paper core   76mm
Specification of paper core  20mm
airshaft unwinding
(4)gluing device
The gluing anilox roller （shaftless anilox roller）
Independent variable frequency motor drive,Independent inverter control
Synchronization mode： Host inverter with anilox roll motor frequency converter by PLC Synchronization
Anilox Roller：160mm
The gluing press roller ：120mm
the gluing press roller pressurized form： both sides cylinder pressurized
scraper form： Pneumatic scraper
Three-dimension angle adjustable
Horizontally, vertically, and the angle of the available manual adjustment
Scraper shuttle movement  6mm（Independent motor-driven machinery moving)
Glue bucket lifting by manual adjustment
(5) Composite device
Composite heat rollers by independent inverter motor drive
Composite hot roller surface hard chrome mirror processing
Composite hot roller：320mm， Internal oil heating, automatic temperature control
composite pressure roller：160mm
composite pressure： air pressure，0-6kg/cm
(6) Drying device
A. Oven length 8M, sub-paragraph 4, external electric heating
Oven guide roller arrangement of arched
Oven guide roller all main drive roller
B. Heating boxes
each set with External heating packs
with heat sink form heating tube
Heating inlet fan：1.5kw
Air volume can be adjusted
C. Exhaust pipe

The drying box Exhaust volume through wind door adjustment
