全自动纸碗外套机是一种多工位全自动的纸碗贴面成型设备。该机采用变频调速。它由自动送纸、超音波焊接、双汽缸定位、机械手传送、自动刷胶、放杯、贴面、等连续工序组成，填补了国内纸碗贴面成型设备的空白。
纸碗规格:35（可根据用户实际容量大小需求更换各式模具）
碗纸材料:240-350g/m2（单面或双面涂层纸张）
生产速度:45-50只/分(pcs/min)
电源:220V-380V
总功率:1.5Kw
重量:800kg
外形尺寸:2060×810×1050mm

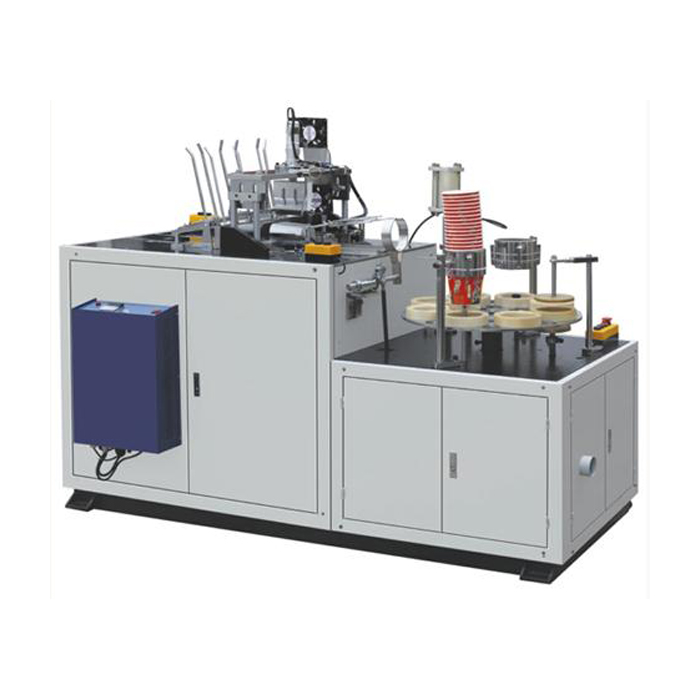

Automatic Paper Cup/Bowl Outer Sleeve Forming Machine
Introduction

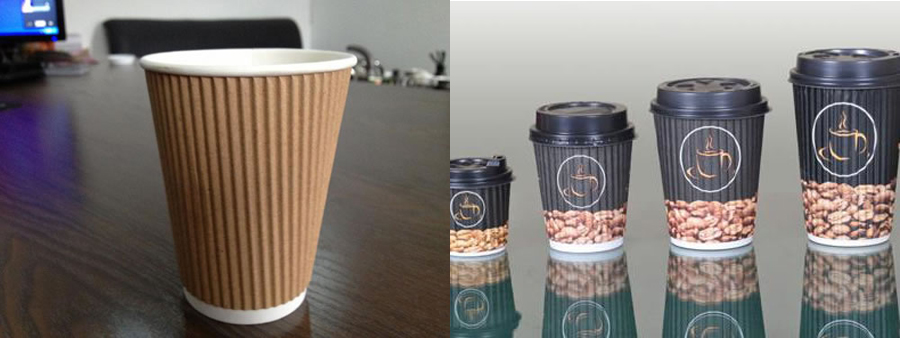

DSD-ZWT-35 automatic paper cup/bowl outer sleeve forming machine is a multi-station automatic paper cup/bowl forming equipment adopting frequency control. This paper cup/bowl sleeve machine covers a series of procedures including automatic paper feeding, ultrasonic welding, double cylinder positioning, manipulator transmission, automatic gluing, putting bowls, veneering, etc. The paper cup/bowl outer sleeve forming machine is developed and designed according to the market demand. It can produce direct paste cup/bowl, corrugated cup/bowl and two-layer cup/bowl.
Features
1. DSD-ZWT-35 paper cup/bowl sleeve machine has functions such as automatic paper feeding, side sealing by ultrasonic, glue spraying, automatic bonding to lower cup/bowl, automatically paper cup/bowl connecting, photocell detection, failure alarm, counting, etc.
2. This paper cup/bowl outer sleeve forming machine adopts advanced technology and features reliable design, stable performance, convenient maintenance and simple operation.
3. Its main part includes motor, gear box, ultrasonic system and hardened cam.
4. The paper cup/bowl sleeve machine is also characterized by small occupying area and high working efficiency.
Operation
1. People are forbidden to be close when the machine is running.
2. The paper cup/bowl outer sleeve forming machine is easy to operate. One person can complete the whole procedures.
3. The mechanical moving parts should add oil daily and butter-grease every 15 days. All screws or chains of the paper cup/bowl sleeve machine must be checked carefully and locked tightly.
Packaging and Transportation
We use wooden cases to package paper cup/bowl outer sleeve forming machines, which is convenient for sea transportation.
Parameters of DSD-ZWT-35 Paper Cup/Bowl Sleeve Machine
Paper Cup Size:8 oz to 35 oz
Speed:45 to 50 pcs/min
Raw Material:200 to 350 gsm, single PE coated paper or varnished cardboard paper
General Power:1.5 kW
Electricity:380 V, 3 phases or 220V, 1 phase
Weight:800 kg
Measurement:2.06 m × 0.80 m × 1.05 m
