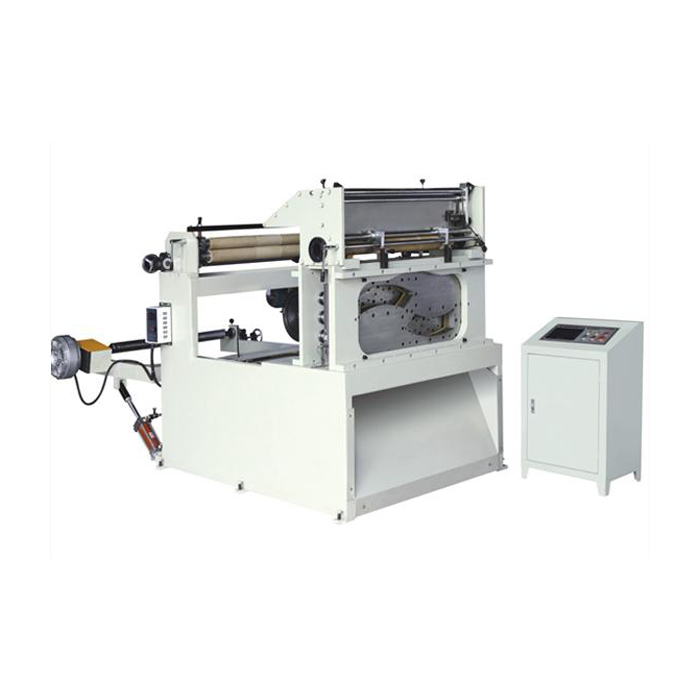

卷筒纸模切机

DSD-MB-CQ-850卷筒纸模切机采用变频调速成、伺服送料、光电跟踪实现高速成冲切整理，相比传统压滚机要高速省时省料，经济效益可观。

外型尺寸:3500×1500×2000mm
重量:1500kg
速度:160-250strokes/min
纸张宽度:850mm
控制系统:AC-Servo Motor
功率:5kw

Introduction

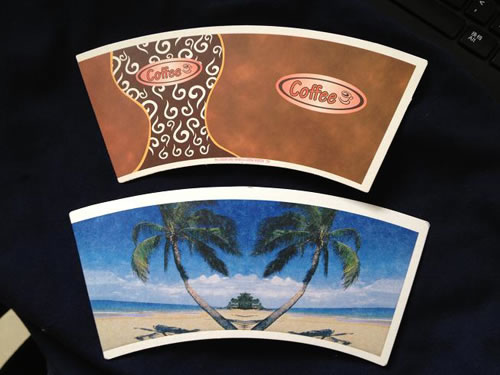

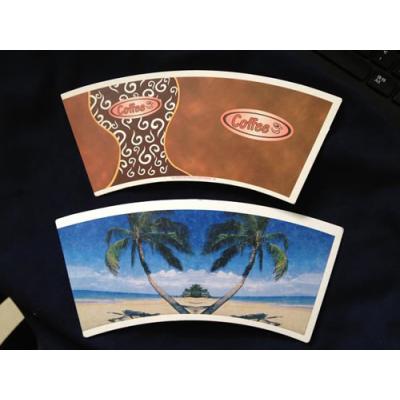

DSD-MB-CQ-850 automatic punching and die cutting machine is equipped with PLC touch screen control system. It adopts micro-computer to regulate speed, servo motor to feed paper and uses the photo sensor to track and collect materials. This kind of die cutting equipment can also realize punching and cutting at a high speed by setting certain length or tracking printing color code. The mould is imported from South Korea with durable and good die cutting features. The punching and die cutting machine is an upgraded model especially used for cutting fan shape paper cups.

Features
1. It also possesses reasonable structure.
2. Compared to the traditional cutting machine, this die cutting equipment is much more efficient, time-saving, material-saving and much more profitable.
3. The punching and die cutting machine features horizontal punching, automatic stacking, automatic stripping, smooth running, high speed, high accuracy, high efficiency and low loss.

Packaging and Transportation
We use wooden cases to package the die cutting equipment, which is convenient for sea transportation.

Parameters of DSD-MB-CQ-850 Automatic Punching and Die Cutting Machine
Overall Dimension:3500 mm × 1500 mm × 2000 mm
Weight:1500 kg
Speed:160 to 200 strokes/min
Paper Width:850 mm
Control System:AC servo motor
Power:5 kW
