特点: 结构紧凑，运行平稳，操作简单，维护方便，无级变频调速，PC电路控制面板，行程任意可调，模具更换简便，采用机械手夹持进给，同步准确可靠可根据用户要求设计模具。
DSD-MB-420型杯盖成型机，是我公司科研人员结合市场需求，按医药行业“GMP”以及食品QS标准要求，结合当前集中主流的塑料包装成型机型的特点，创新研发的新款产品，该机采用了成型冲孔，冲裁机械同步生产，避免了产品在人工冲孔，冲裁过程中受到的交叉污染，保证了产品生产过程中完全符合GMP/QS要求。
另外同步生产可减少了生产操作工序，减少劳动力的消耗，其设备采用特殊的加热成型方式，大大降低电力的消耗；新型的冲裁理念，有效地减少废料的产生；这样，从各方面降低了生产成本。另外，其具有用途广泛，应用于药托，PS/PE/PVC杯盖，等塑料制品的全自动生产；该机具有价格实惠，整机美观大方，操作简便，人性化制作，深受国内外用户的欢迎！
冲裁频率:15-35strokes/min
行程可调范围:30-160mm
最大成型深度:30-60mm
电源总功率:4kw
耗气量:0.2m3/min
气压:0.4-0.7mpa
包装尺寸:2500×1000×1600mm
重量:1000kg

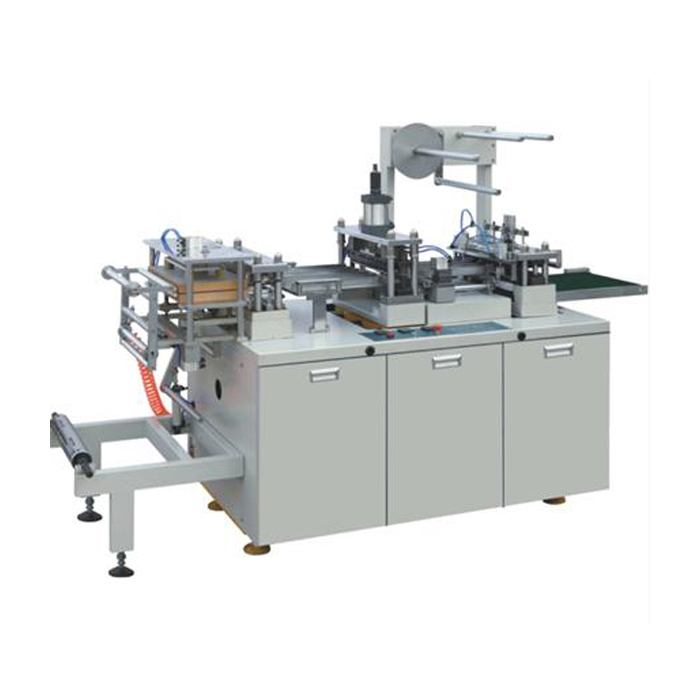

PLC Controlled Automatic Cup Lid Forming Machine
Description

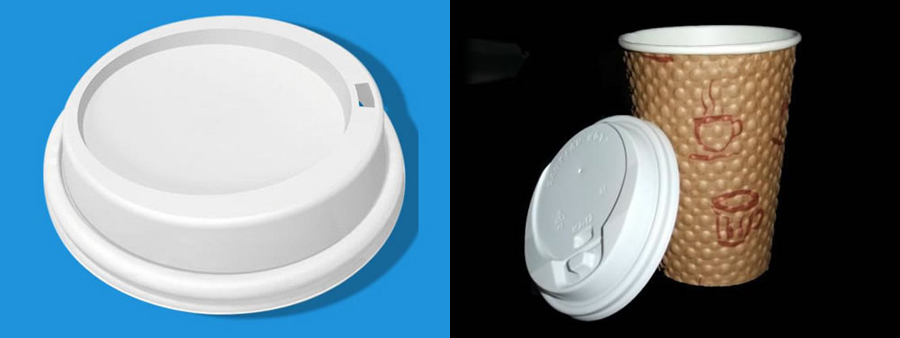

DSD-MB-420 PLC controlled automatic cup lid forming machine is mainly used for molding and punching of plastic products, such as HIPS, PS, PVC, PET, etc. It is a new type of automatic cup lid making machine that combines advantages of several types of main forming machines and also brings more improvement and innovation. Unwinding, molding, punching, blanking and rolling can be done synchronously. MB-420 cup lid forming machine (cup lid making machinery) adopts special feeding device that can save 20 times electric power. Besides, special punching device can save five percent of materials. This automatic cup lid making machine realizes GMP or QS double standard dust-free purification production that improves products’ hygiene and safety and solves cross-contamination. It features adjustable stroke and easy mold replacement. Customers can easily replace section sizes to fit a variety of specifications of products.
Features
1. This cup lid forming machine features compact structure, reliable performance, smooth operation, stable function, easy operation and low maintenance.
2. Mingbo automatic cup lid making machine possesses PLC human-computer interface and touch screen, adn realizes stepless frequency control and PC circuit control.
3. The maximum feeding width is 420 mm and the diameter is up to 160 mm.
4. PLC controlled cup lid forming machine includes the following main parts: cylinder, cam and motor.
5. For packing of this automatic cup lid making machine, our company makes use of wooden cases for sea transportation.
6. We can design different moulds according to users’ needs.
Parameters of PLC Controlled Automatic Cup Lid Forming Machine
Cutting Frequency:15 to 45 times/min
Power Supply:380V, 220V, 50 Hz
Stroke Adjustable Range:30 to 160 mm
Max. Forming Depth:30 mm
Max. Forming Area:400 mm × 160 mm
Capacity:3600 pcs/h to 6000 pcs/h
Motor Power:1.5 kW
Consumption:more than 0.2 m3/min
Pressure:0.4 to 0.7 Mpa
Overall Dimension:2500 mm × 1000 mm × 1600 mm
Weight:1000 kg
