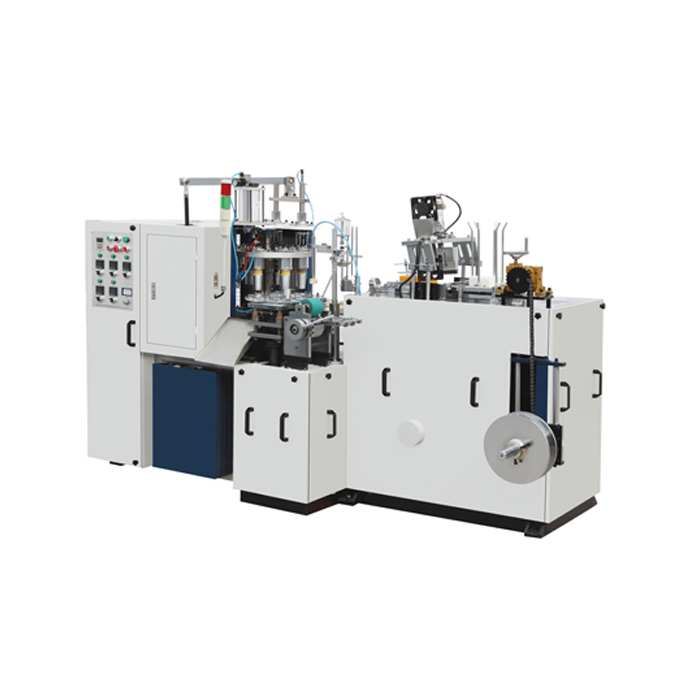

S16特殊规格单双PE纸杯机

DSD-MB-S16型 单双PE纸杯成型成机是一种多工位自动机械,它通过自动送纸、封合、注油、冲底、加热、滚花、凸滚、卷边、卸料等连续工序,生产纸质的饮料杯、冰淇淋杯或其它食品的锥台形容器。 本机采用微机程序控制变频器,无级调速。电源:220V-380V自由选择。自动控制采用光控无触 点开关。

  • Model DSD-MB-S16
  • Contact us Mobile Buy

More products

Product Name : S16特殊规格单双PE纸杯机



产品简介:
DSD-MB-S16型 单双PE纸杯成型成机是一种多工位自动机械,它通过自动送纸、封合、注油、冲底、加热、滚花、凸滚、卷边、卸料等连续工序,生产纸质的饮料杯、冰淇淋杯或其它食品的锥台形容器。 本机采用微机程序控制变频器,无级调速。电源:220V-380V自由选择。自动控制采用光控无触 点开关。
DSD-MB-S16特殊规格纸杯机是根据市场的需要而设计生产制作的,本机型在常规的纸杯机(MB-A12/MB-S12)的基础上,增大了机器的设计行程,用于生产纸杯高度超过125mm的纸杯,尺寸范围为160Z-32OZ。

生产能力:35-40只/分(pcs/min)
杯纸材料:200-(克)单面及双面淋膜纸杯专用纸
纸杯规格:12-16(可调换模具)
电源总功率:220V 50Hz 7Kw 380V 50Hz 7Kw
重量:1600kg
外形尺寸:2800×1200×1800(L×M×H)mm

Ultrasonic Double PE Coated Paper Cup Machine
Introduction

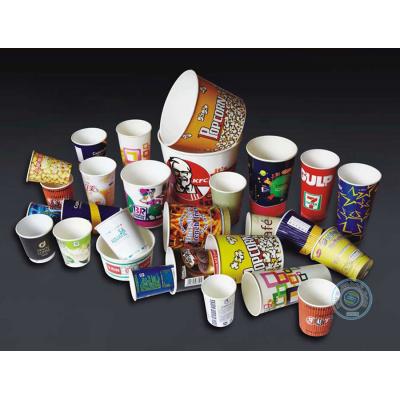

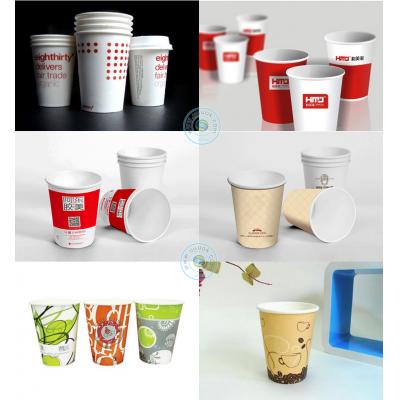

DSD-MB-S16 ultrasonic double PE coated paper cup machine is a piece of equipment developed from DSD-MB-S16 double side PE coated paper cup making machine. We install an ultrasonic system to this double PE coated paper cup machine to seal the paper cup body. This ultrasonic paper cup forming machine solves the problem that double side PE coated paper can not be sealed by heater. When a heater is adopted on the outside surface, PE film will be burnt, become yellow or blackish and make cups in ugly shape. Enjoying photoelectric detection, fault alarm and counting functions, Mingbo ultrasonic double PE coated paper cup machine has become an ideal device for producing special beverage cups, tea cups, coffee cups, ice cream paper cups or other disposable cone type food paper containers. We should remember to keep the ultrasonic paper cup forming machine clean and lubricate the machine with oil regularly.

Application
Ultrasonic double PE coated paper cup machine runs a series of successive procedures, such as automatic paper feeding, sealing, oiling, bottom punching, heating, knurling, curling, cup discharging, etc. This ultrasonic paper cup forming machine is suitable for producing paper cups of which the length is less than 110 mm and the size ranges from 12 to 16 oz.

Features
1. Ultrasonic double PE coated paper cup machine features stable performance, cheap operating cost, low investment and easy maintenance with minimum cost.
2. It adopts optically controlled non-contact switch for automatic control.
3. This ultrasonic paper cup forming machine possesses micro-controlled transducer and speed adjustment function.
4. Ultrasonic double PE coated paper cup machine mainly consists of ultrasonic sealing system, speed reducer, motor, knurling set, bottom heating set and inverter. It is easy to operate.
5. Our company makes use of wooden cases for sea transportation.
6. We can easily change molds so as to produce paper cups with different sizes.

Types for Choice
In addition to ultrasonic paper cup forming machine, we also produce single PE coated paper cup making machine, double PE coated paper cup forming machine, PLC controlled high speed paper cup machine and cup top flatten machine.

Parameters of DSD-MB-S16 Ultrasonic Double PE Coated Paper Cup Machine
Paper Cup Size:12 to 16 oz
Speed:38 to 45 pcs/min
Paper Cup Top Diameter:Min. 45 mm to Max. 104 mm
Paper Cup Bottom Diameter:Min. 35 mm to Max. 75 mm
Paper Cup Height:Min.110 mm to Max. 140 mm
Raw Material:180 to 380 gsm, Single PE or Double PE Coated Paper
General Power:7 kW
Electricity:380 V, 3 Phases or 220V, 1 Phase
Weight:1600 kg
Measurement:2.8 m × 1.2 m × 1.8 m
