产品简介:
DSD-MB-S12型单双PE纸杯成型机是一种多工位自动机械，它通过自动送纸、封合、注油、冲底、加热、滚花、凸滚、卷边、卸料等连续工序，生产纸质的饮料杯、冰淇淋杯或其它食品的锥台形容器。 本机采用微机程序控制变频器，无级调速。电源：220V-380V自由选择。自动控制采用光控无触 点开关。
DSD-MB-S12纸杯成型机是生产单面PE和双面PE纸杯的理想设备。本机操作简单（一个人）、性能稳定、占地少、效率高，是投资创业的首选项目。
生产能力:40-50只/分(pcs/min)
杯纸材料:160-350（克）一面涂膜纸杯专用纸
纸杯规格:2-12（可调换模具）
电源总功率:220V 50Hz 7Kw 380V 50Hz 7Kw
重量:1500kg
外形尺寸:2600×1200×1700(L×M×H)mm

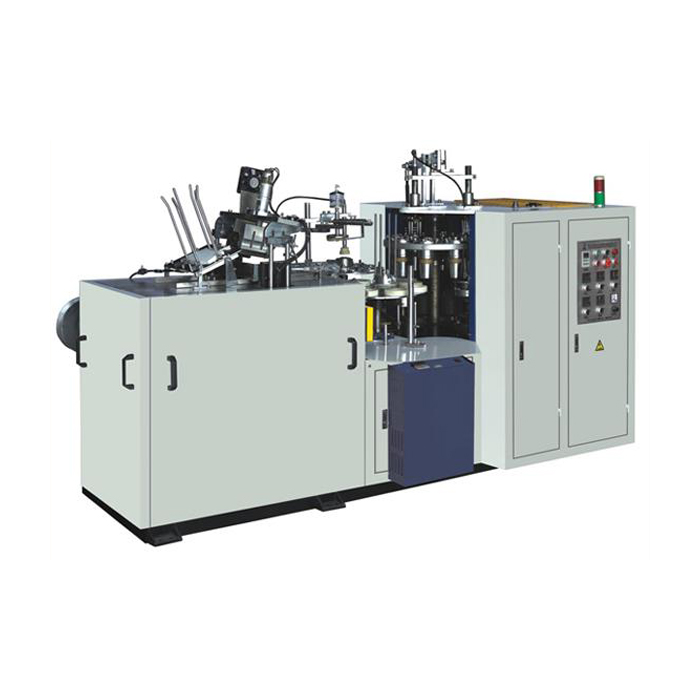

Double PE Coated Paper Cup Machine
Description

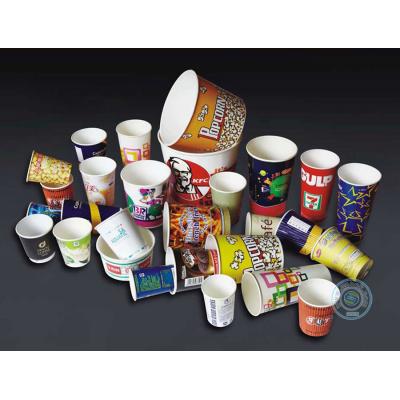

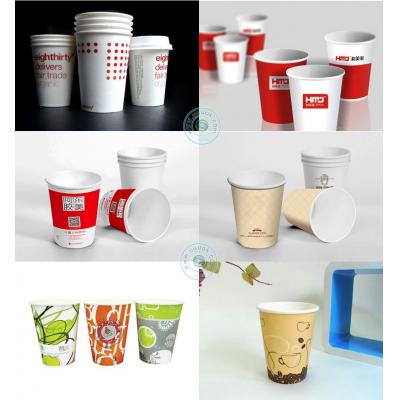

Double PE coated paper cup machine is a kind of multi-station automatic molding machinery. It runs a series of successive procedures including automatic paper feeding, sealing, oiling, bottom punching, heating, knurling, curling, cup discharging, etc. Mingbo double side PE coated paper cup machine (double PE coated paper cup making machinery) has become an ideal device for producing beverage cups, tea cups, coffee cups, advertising paper cups, market paper cups, ice cream paper cups or other disposable cone type food paper containers. If customers need much bigger cups, DSD-MB-S16, DSD-MB-S22 and many other models will be your good choice. In addition to the double side PE coated paper cup machine, we also produce single PE coated paper cup forming machine, ultrasonic double side PE paper cup making machinery, PLC controlled high speed paper cup machine and cup top flatten machine.
Features
1. The main part includes ultrasonic sealing system, index, speed reducer, motor, knurling set, bottom heating set and inverter.
2. Double side PE coated paper cup machine owns photoelectric detection, fault alarm and counting functions.
3. This paper cup making machinery features simple operation, stable performance, small occupying area, high efficiency and more profit. It has become the best choice for customers’ investment.
4. Double side PE coated paper cup machine should be cleaned and lubricated regularly.
5. We use wooden cases to package this paper cup making machinery, which is convenient for sea transportation.
Parameters of DSD-MB-S12 Double PE Coated Paper Cup Machine
Paper Cup Size Range:2.5 to 12 oz
Speed:45 to 50 pc/min
Paper Cup Top Diameter:Min. 45 mm to Max. 104 mm
Paper Cup Bottom Diameter:Min. 35 mm to Max. 75 mm
Paper Cup Height:Min. 35mm to Max. 110 mm
Raw Material:180 to 350 gsm, Single or Double PE Coating Paper
General Power:5 kW
Electricity:380 V, 3 Phases or 220V, 1 Phase
Weight:1500 kg
Measurement:2.6 m × 1.22 m × 1.7 m
