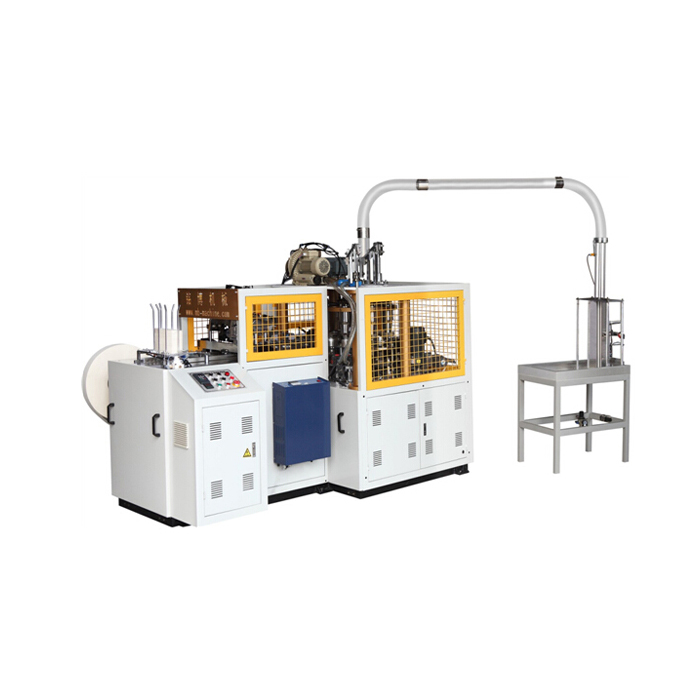

C12A中速纸杯机全自动纸杯成型机

DSD-MB-C12A中速纸杯机系我司最新研发的一款全自动纸杯成型机，该机吸取各国先进技术，结合MB多年生产经验并加以不断创新研制而成，可适用市场上各种品质的纸张材料，这是中速机历史上一项重大的突破。本机采用进口施耐德变频器驱动，超声波焊接，瑞士热风预热,整体自动润滑,采用真空泵吸纸,并带自动收杯系统,性能稳定,自动化程度高.

技术参数
型号:DSD-MB-C12A
材料规格:150g-350g单面或双面淋膜纸
生产速度:70-80只每分钟
电源:380v 50hz
气源:0.20m3/min
总功率:11kw
重量:3000kg
外形尺寸:2500*1300*1900mm

Medium speed paper cup machine
medium speed paper cup machine, is invented based on the leading technology of Mingbo Machinery, adopt the advantages of domestic and abroad technology, which is suitable on any market paper quality. MB-C12 adopt the Imported Schneider inverter to drive the machine, Switzerland Leister hot air system for bottom preheating, and automatic oil lubricating system, vacuum pump to suck down the paper, together with the automatic cup collecting system, it realized the fully automatic and more efficient.

Material:150g-350g single or double pe coated paper
Speed :70-80pcs/min
Voltage :380v 50hz
Air power:0.20m3/min
Rated power:11kw
weight:3000kg

Overall dimension:2500*1300*1900mm
