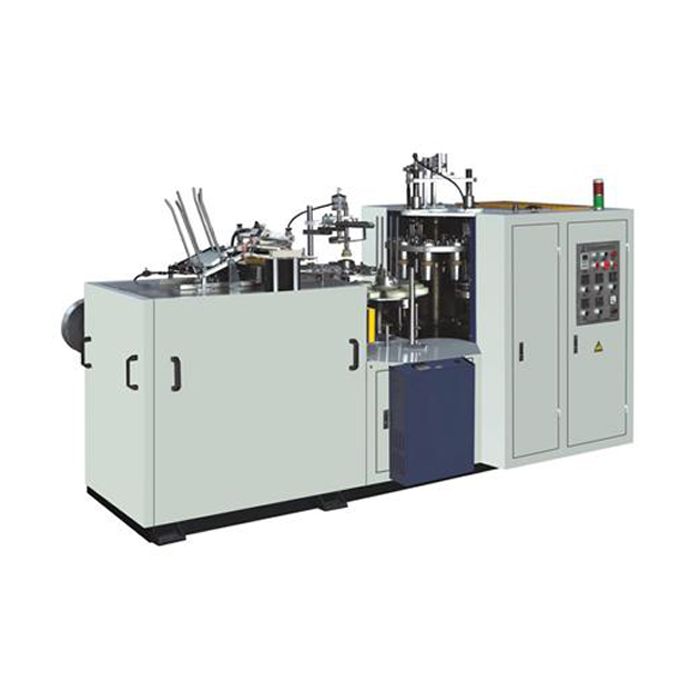

A12全自动单面PE淋膜纸杯机

产品简介:
DSD-MB-A12型 单PE纸杯成型成机是一种多工位自动机械，它通过自动送纸、封合、注油、冲底、加热、滚花、凸滚、卷边、卸料等连续工序，生产纸质的饮料杯、冰淇淋杯或其它食品的锥台形容器。 本机采用微机程序控制变频器，无级调速。电源：220V-380V自由选择。自动控制采用光控无触 点开关。

生产能力:40-50只/分(pcs/min)
杯纸材料:140-230（克）一面涂膜纸杯专用纸
纸杯规格:2-12（可调换模具）
电源总功率:220V/380V 50Hz 4.8Kw
重量:1500kg
外形尺寸:2600×1200×1700(L×M×H)

Single PE Coated Paper Cup Machine
Introduction
Single PE coated paper cup machine is the ideal equipment for producing single-sided coated paper cups. This paper cup forming machine has unique design with a guard cover for heat dissipation that ensures longer life span. It features easy operation, stable performance, small occupying area, low consumption and high efficiency. It can run stably with little noise. As an automatic paper cup making machine, this single PE coated paper cup machine runs lots of procedures including automatic paper feeding, side sealing, oiling, bottom punching, bottom pre-heating, bottom folding, bottom knurling, top curling and cup discharging. Besides, Mingbo also produces double PE coated paper cup forming machine, ultrasonic double side PE paper cup making machine, PLC controlled high speed paper cup machine and cup top flatten machine.

Application

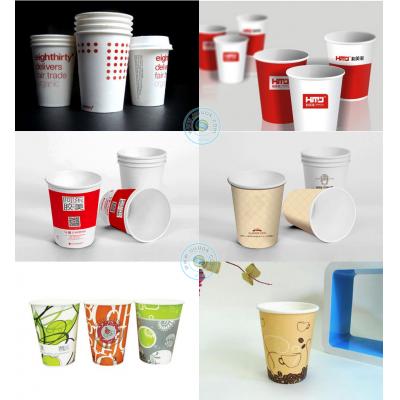

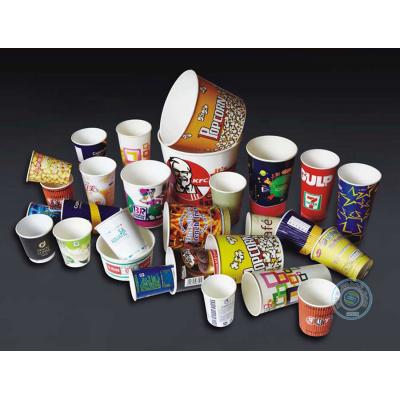

Paper cups produced by MB-A12 single PE coated paper cup machine can be used for tea, coffee, milk, ice cream, juice and water. It is an economical and classical paper cup forming machine suitable for making cups with 2.5 to 12 oz. If customers require bigger cups, our model MB-S16 or MB-S22 will be your best choice.

Main Parts
DSD-MB-A12 single PE coated paper cup machine mainly consists of gear box, chain, inverter, knurling set, top rolling set, speed reducer, heating bar and bottom heating station.

Maintenance and Packing
For maintenance, users should pay attention to the lubrication of paper cup forming machine. For packing, we make use of wooden cases, which is convenient for sea transportation.

Parameters of DSD-MB-A12 Single PE Coated Paper Cup Machine
Paper Cup Size Range:2.5 to 12 oz  (80 to 330 ml)
Production Speed:45 to 50 pcs/min
Paper Cup Top Diameter:Min. 45 mm to Max. 104 mm
Paper Cup Bottom Diameter:Min. 35 mm to Max. 75 mm
Paper Cup Height:Min. 35 mm to Max. 110 mm
Raw Material:170 to 230 gsm, Single PE Coated Paper
General Power:4.8 kW
Electricity:380 V, 3 Phases or 220V, 1 Phase
Weight:1500 kg
Measurement:2.6 m × 1.22 m × 1.7 m
