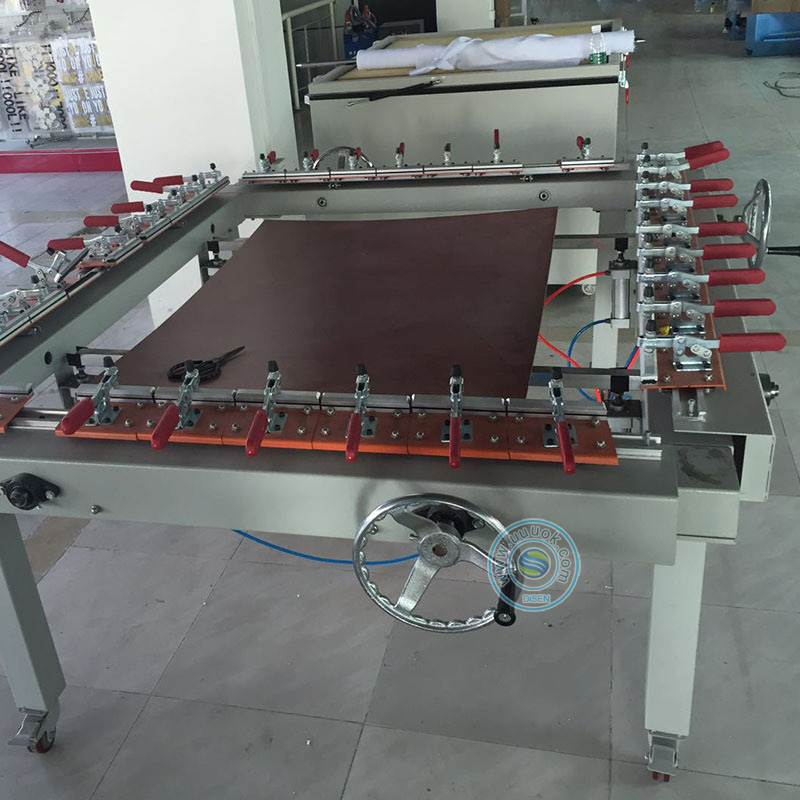

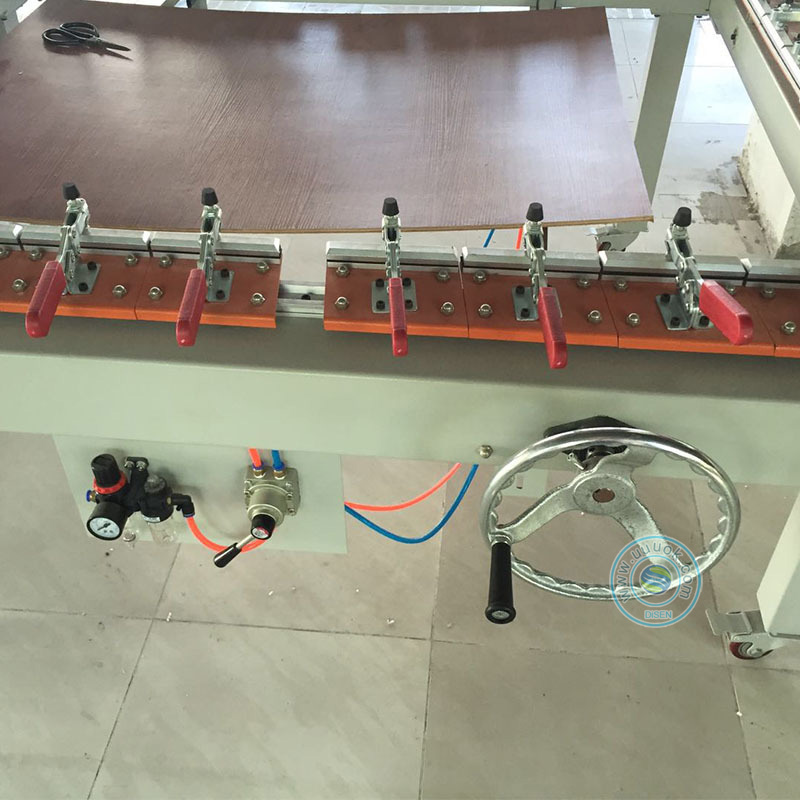

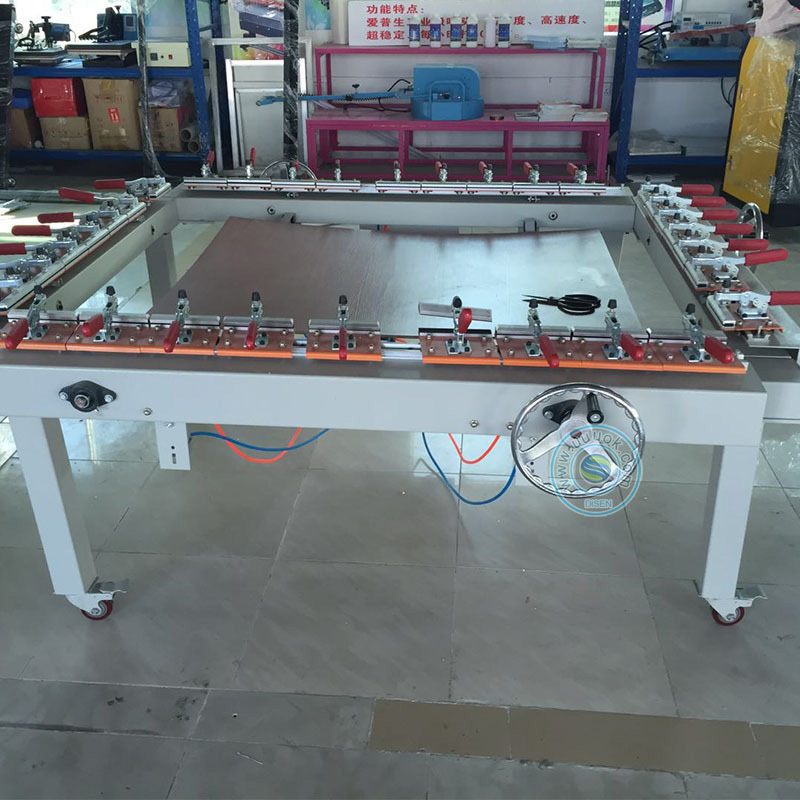

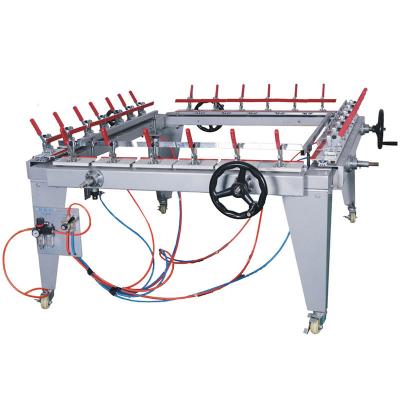

JC-23 Large-size Automatic Screen Printing Stretching Machines

Features:
The sprocket, the chain and the screw drive are used to make the stretch nets synchronously.
Simultaneously lifting the net with multiple cylinders ensures that the mesh and the mesh are not deformed, which is convenient for the mesh.
The size of the stretcher frame can be changed according to the size of the mesh and the size of the mesh frame, and the size and operation of the stretcher frame can be contracted and expanded, and the positioning is convenient.
With a small frame, you can stretch more than one at a time.
With a chain tensioning mechanism.
The guide column guides and positions to ensure the parallel displacement of the stretch net, prevent mechanical deformation, and protect the silk porch.
Performance characteristics:
1. The machine adopts worm gear, worm to drive gear and gear transmission, so that the process of stretching is stepless and synchronous.
2. Synchronize the net with 4 sprocket to ensure that the mesh cloth mesh is not deformed and it is easy to stick to the net.
3. Change the size of the mesh frame according to the size of the mesh and the size of the mesh frame. When the size of the stretcher frame is reduced and enlarged, the operation and positioning are convenient.
The main technical parameters:
Inner shape size: 1200*1500*700mm
Stretchable maximum frame: 1200*1500mm
Shrinkable minimum grid: 700*700mm
Stretching net maximum tension: 25N
Net weight: 250KG
Gross weight: 300KG
