Head：1 head
Needle：6 needles
Weight：135kg
Embroidery area：200*300mm
Speed：1000RPM
Package size：840*840*950mm
Control System:8" LCD touch screen
Operating languages:16 different languages
Function: Flat embroidery / cap embroidery / 3D embroidery /T-shirt embroidery are available
I. Embroidery Machine Features

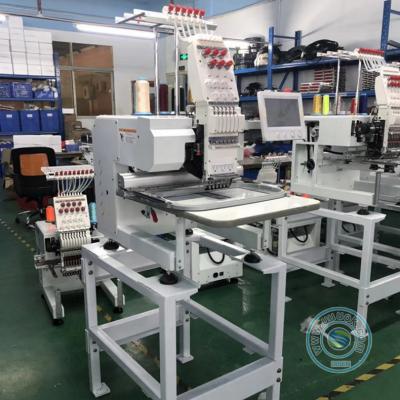

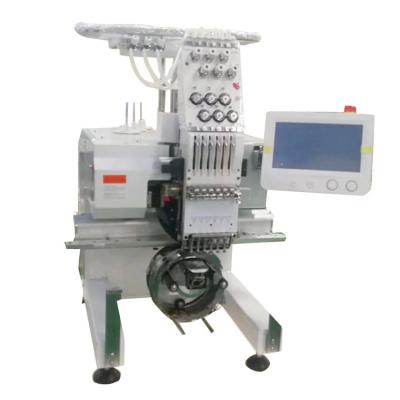

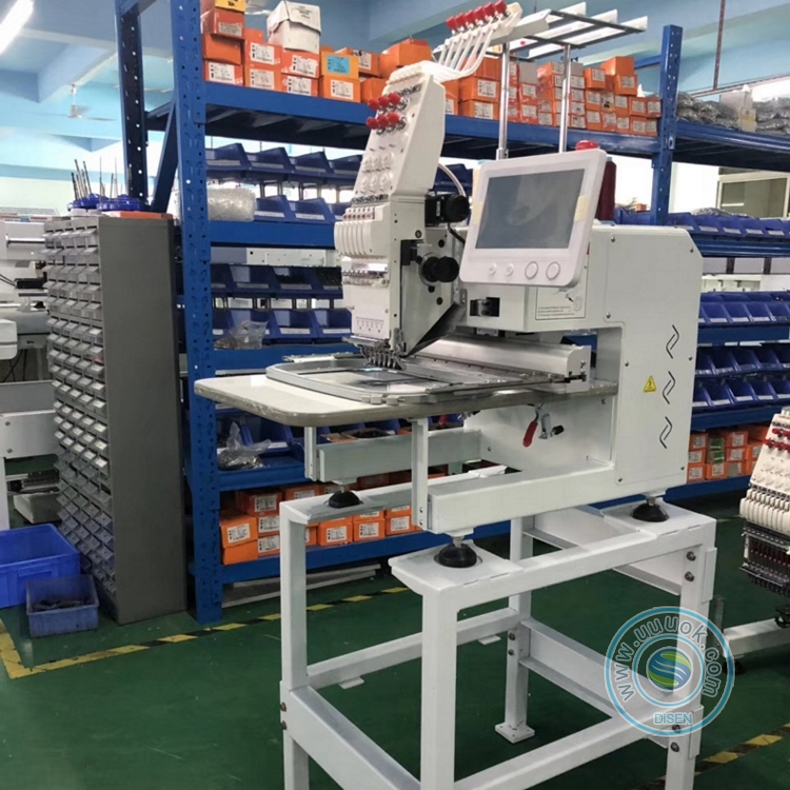

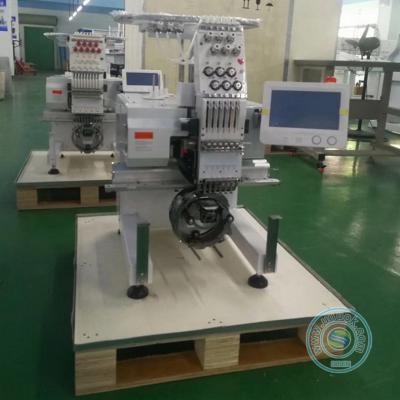

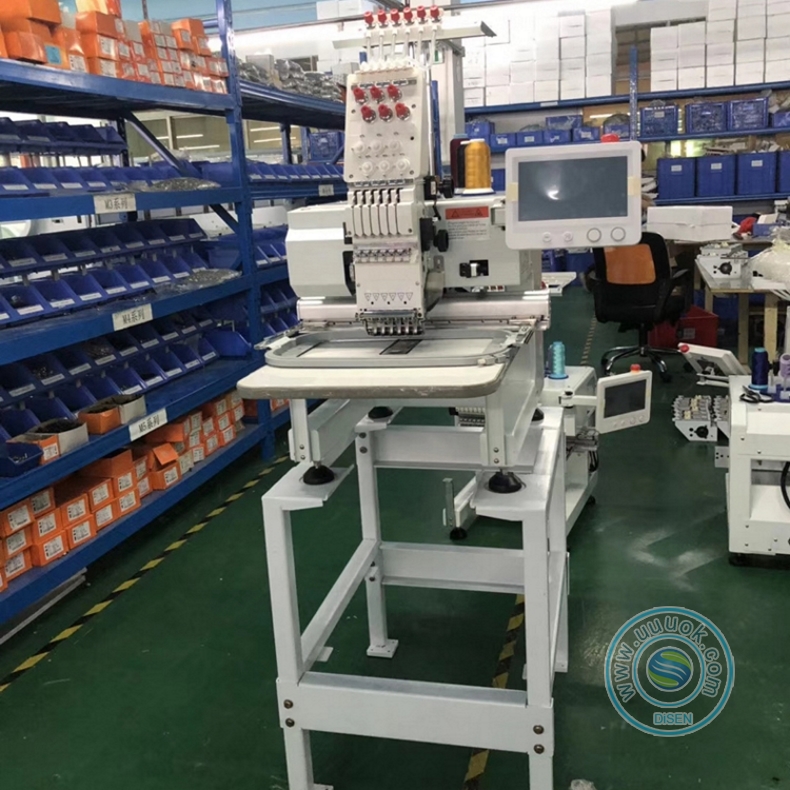

1. Single head embroidery machine with 6 needles
2. Automatic thread trimmer
3. Maximum speed 1000 SPM
4. 270° Wide cap frame unit
5. 8 inch touch screen display showing real time stitching
6. USB input port
7. Automatic color change
8. Thread break detection
9. Pre-sew design trace capable
10. Memory size 20, 000, 000 stitches
11. Emergency stop
12. Electricity: 110V/60Hz or 220V/50Hz available
14. Low power consumption 100W to 150W
15. Built-in bobbin winder
II. Control pannel functions:
A. 8" touch screen showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available like English, French, Spanish etc.
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
III. Hoops/frames
A. 1 x Shirt Front Round Hoop 9 cm (3.5")
B. 1 x Shirt Front Round Hoop 23 cm (9")
C. 1 x Shirt Front Round Hoop 12 cm (4.7")
D. 1 x Shirt Front Round Hoop 15 cm (5.9")
E. 1 x Flat frame 200*300mm
IV. Cap attachments
1pcs cap hoop station for one machine, 1pcs cap driver and 2pcs Cap hoops for each head
V. Other accessories
Table standerd with wheels, Extended Table Top, Operation Manual, Tool Kit , USB driver
V. Optional devices
1. Sequin device
2. Boring device
3. Simple Coiling
4. Simple Cording
5. 8 in 1 device (for shirt pockets, socks, cap backs, bags, shirt sleeves, collar tips, gloves, cuffs of sleeves, ribbons, CD cases)
6. Beads device
