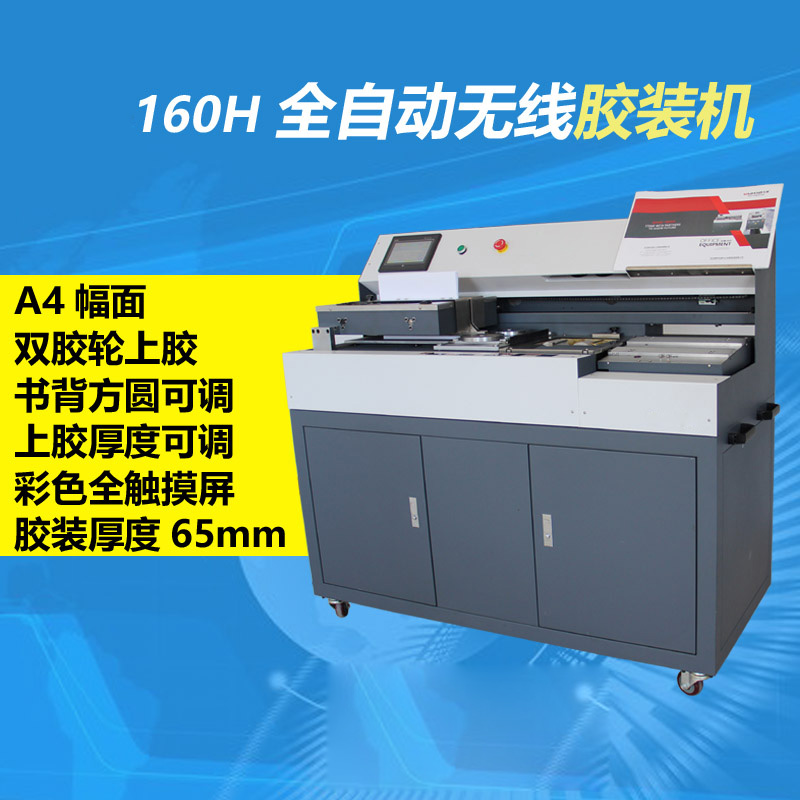

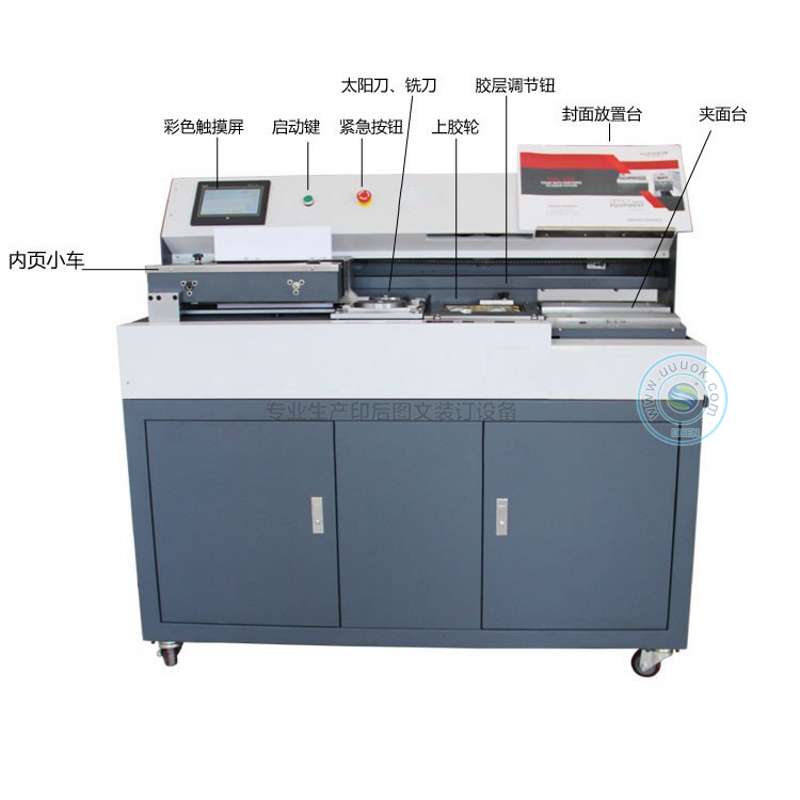

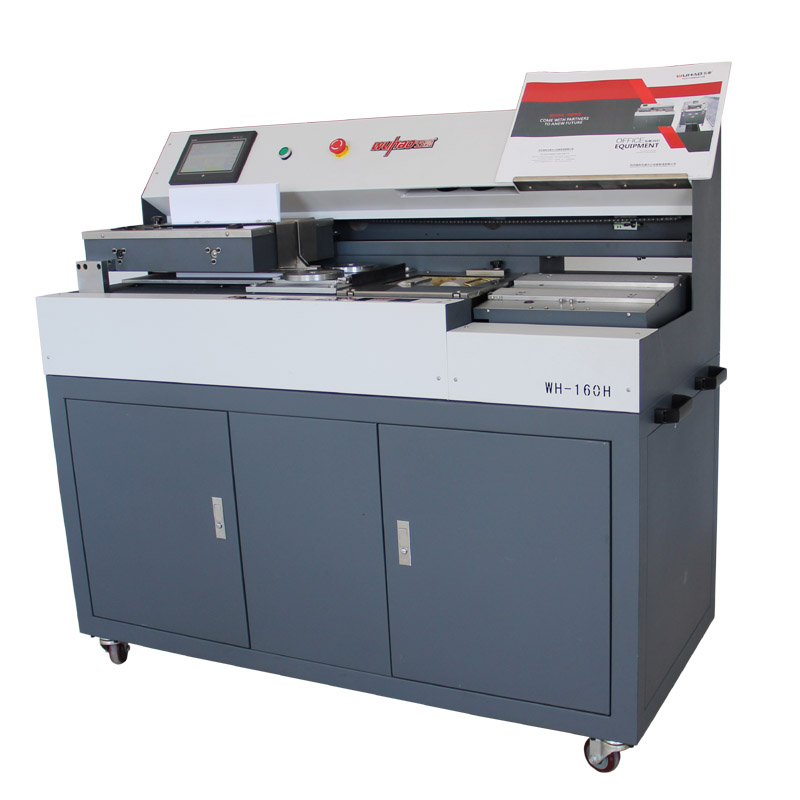

160H hot melt glue binding machine

Heavy frame structure design, appearance patent technology

Aluminum alloy double glue pool design, double rubber glue

The design of rubber structure patent side. Automatic detection of the thickness of books on adhesive side type, the first domestic technology, ensure the service life is longer and more stable

Humanized design, waste paper recycling box function patent technology

Color touch LCD screen display, fault display, easy to operate, can be manual operation, the Chinese and English conversion page

Straight double guide rail structure, open design of the front cover platform

With smoke exhaust function, environmental protection use

The max length of binding book:320mm(A4)

The max thickness of binding book:65mm

Slippage type:beeline

Glue melt time:about 20 minutes

Binding speed: 300books/hour

Electric:220v 50hz 2.5KW

Packing size :1430*700*1350mm

Have the function of side glue

Touch screen

160H 胶装机
性能特点：
重型机架结构设计，外观专利技术
铝合金双胶池设计，双胶轮上胶
彩色触摸液晶屏显示，故障显示，操作方便
可手动操作，中英文转换页面
直线双导轨结构，封面平台敞开式设计
带排烟功能，环保使用

型号:160H
电源：220V 50HZ
功率：1500W
显示方式：液晶
最大装订厚度:65mm
最大装订长度:320mm
最快速度/小时:300/h
铣刀方式：小铣刀+大太阳刀
熔胶时间：约30分钟
胶轮：双胶轮
包装尺寸:1430 x 700 x 1350mm
毛重:约230kg
160H是双胶轮的A4幅面胶装机，最大胶装长度是32cm，最大胶装厚度是6.5cm。双导轨稳定胶装，彩色触摸液晶屏操作，故障显示，手动、自动、中文、英文均可转换，三种装订模式任意调节。装订效率高，牢固度好，性能稳定。
