Galaxy银河1.8米2.1米2.5米压电写真机(单头或双头)

  • Model DSA-UD1.8/2.1/2.5M
  • Contact us Mobile Buy

More products

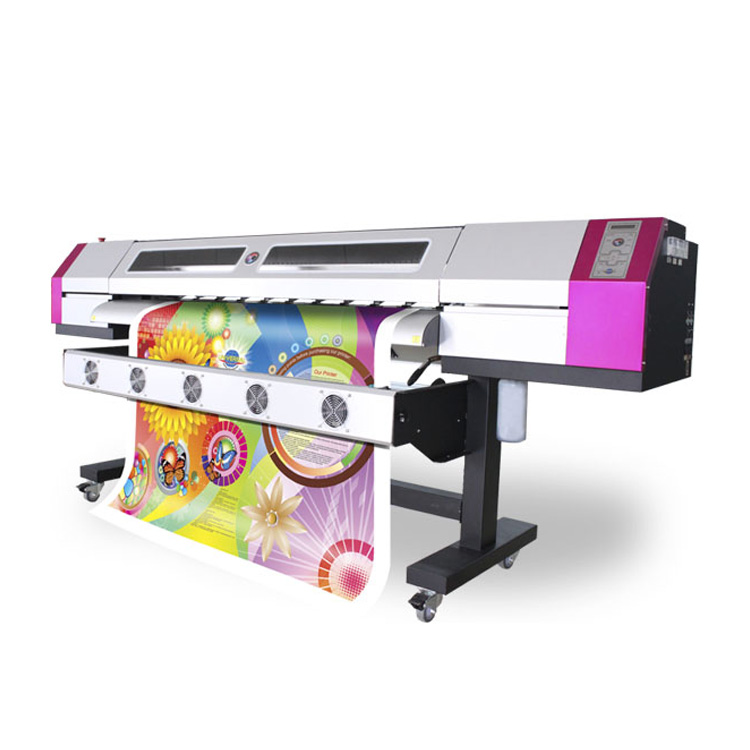

Product Name : Galaxy银河1.8米2.1米2.5米压电写真机(单头或双头)



Specification

Product Model

UD-181LC/UD-182LC

UD-211LC/ UD-212LC

UD-251LC/ UD-252LC

Print head

Epson

Number of Print head

1 Head/2 Heads

1 Head/2 Heads

1 Head/2 Heads

Maximum Print Width

1800mm

2100mm

2500mm

printing mode

Print Speed(m2/hr)

High modeRD

2 PASS 30/55

2 PASS 32/58

2 PASS 32/61

Draft mode(D)

3 PASS 20/38

3 PASS 21/39

3 PASS 21/41

Standard mode(S)

4 PASS 15/28

4 PASS 16/30

4 PASS 16/30

Quality mode(Q)

6 PASS 10/19

6 PASS 11/19

6 PASS 11/20

High quality mode(HQ)

8 PASS 7/14

8 PASS 8/14

8 PASS 8/15

BL mode

12 PASS 5/9

12 PASS 5/9

12 PASS 5/10

Ink Type

Eco Solvent Ink

Ink Color

4 Color C\M\Y\K

Ink Supply System

Low Ink Detector,Auto or Manual Ink Supply System

Auto Cleaning System

Positive Cleaning Anti-clogged Flash Function

RIP Software

Maintop, PhotoPrint, UltraPrint

Print Interface

USB2.0

Printhead Height

2 to10mm Above Media Adjustable

Media Type

Vinyl,Flex,Polyester,Back-Iit Film,Window Film,etc Roll Media or SheetMedia,PVC board

Auto Media Feeding System

Equipped(Max.Media Weight80kg)

Pre-heating & Drying System

Equiped(Drying System Optional)Infra-red Heating System Optional

Clamp

Equipped

Input Power

AC220V 50HZ

Operation Environment

Temperature:20°C--28°C, Humidity: 40%--60%

Machine Dimension

L3080*W990*H1260mm, 204kg

L3,380 x W990 x H1,260mm / 225KG

L3,780 x W990 x H1,260mm / 242KG

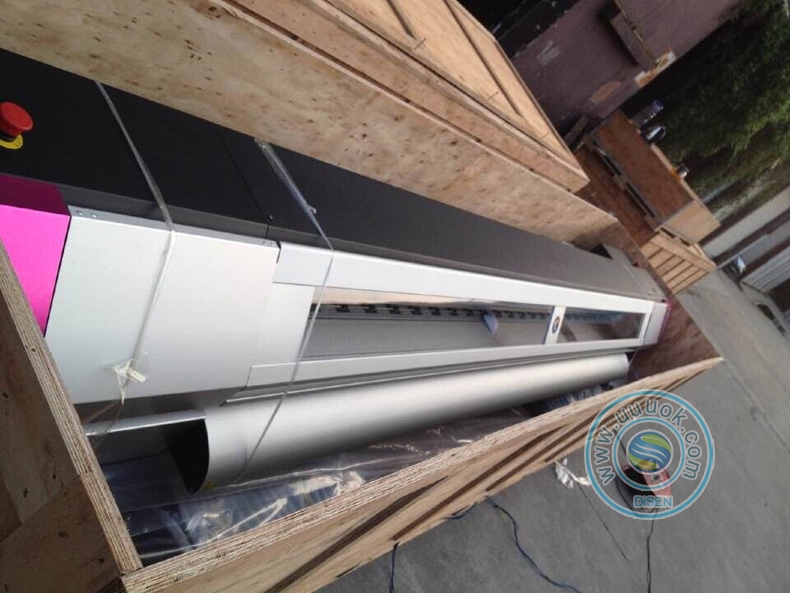

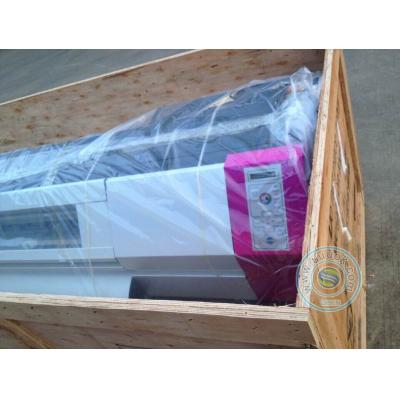

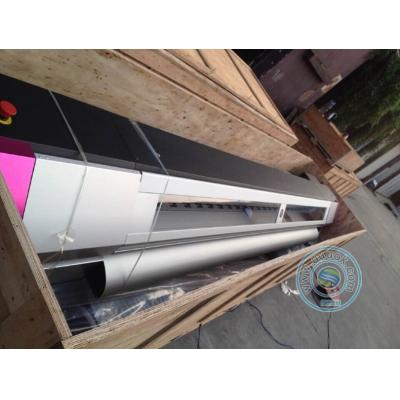

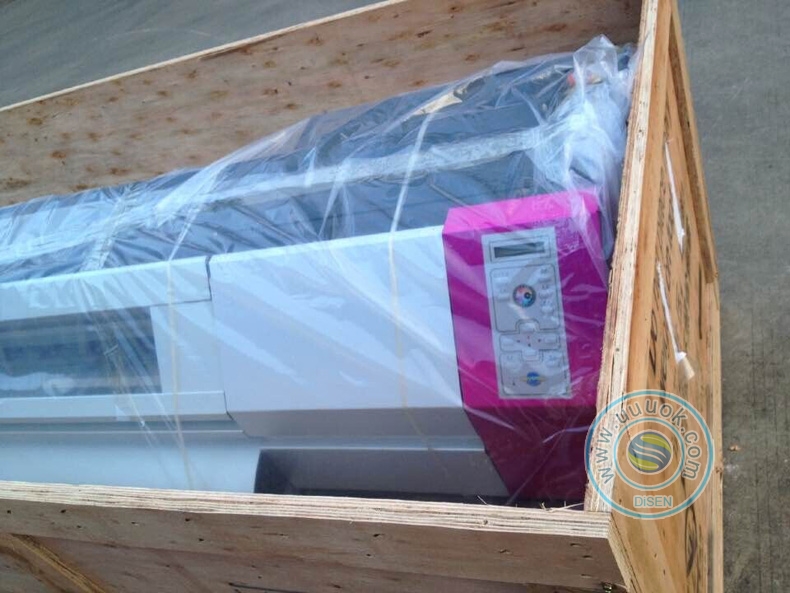

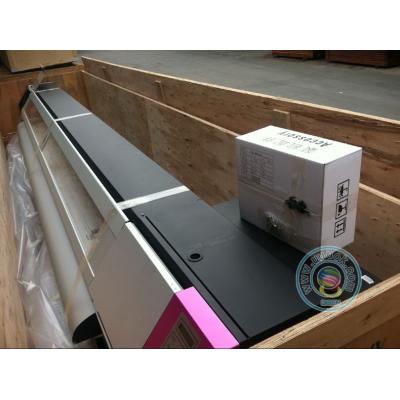

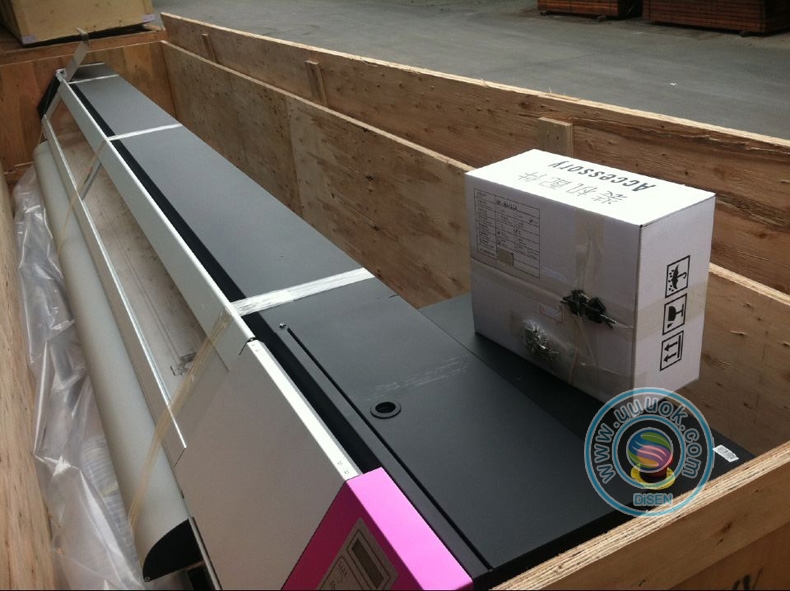

Package Dimension

L3190 *W1100*H845mm,390kg

L3,490 x W1,100 x H845mm / 422KG

L3,890 x W1,100 x H845mm / 443KG

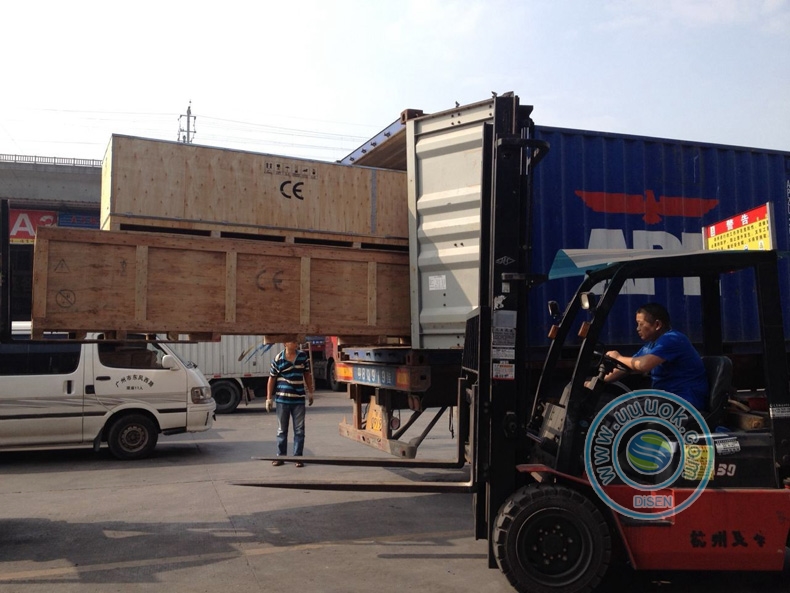

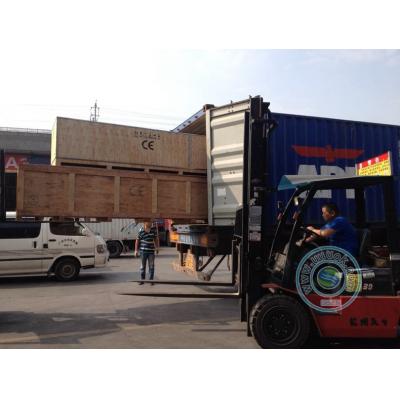

Shipping info.:

2.965CBM

3.243CBM

3.615CBM

Question

How about the warranty of the printer and after-sale service?

Answer

(1) One year of warranty.
(2) About the after-sales service,

If the printer has problem, the client can take a picture or video to the technician.
The technician will teach
the client to fix and operate the printer through the internet.
And we will ask the client to send back the board which is wrong to check it.

Believe us. The technician is full of experience, and the sales also keep in touch with the client.
