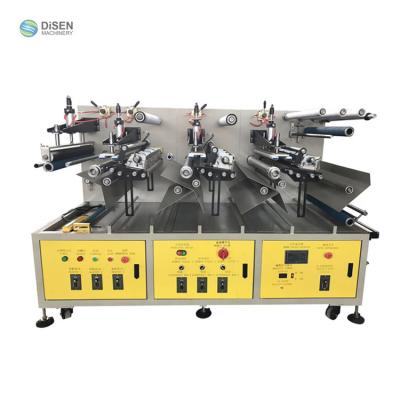

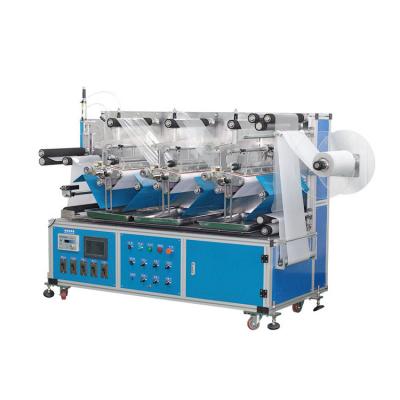

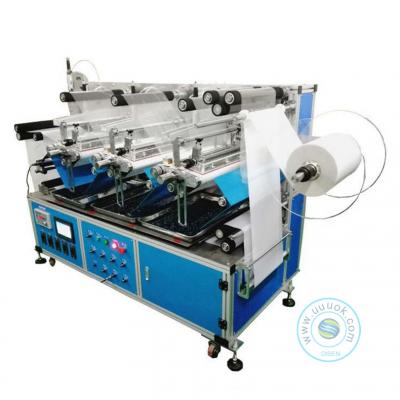

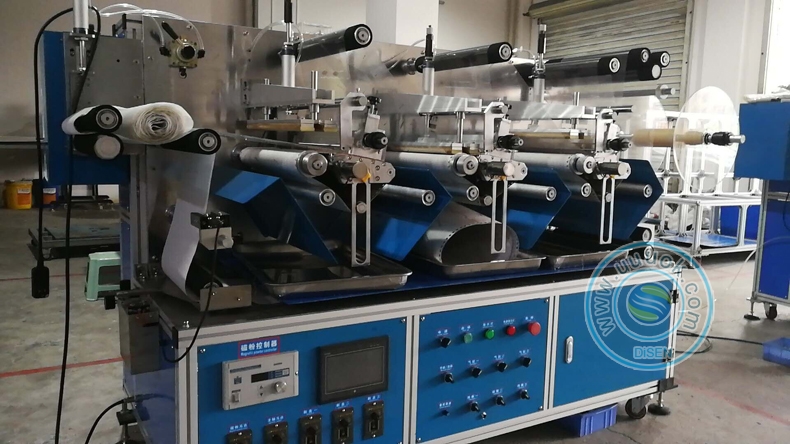

DSC-FZY-QSZ Automatic Brush Drilling Rig

1. This equipment can complete the pattern of multi-color diamonds or multiple sizes of diamonds through one-time brushing, fewer procedures, high efficiency, and improved existing technology. In addition, the existing technology requires multiple devices and multiple working hours, and requires a high level of skill for operating staff. This device can be easily completed, and many intermediate links are reduced.
2. High speed, speed up to 5 meters per minute.
3. Original correction compensation technology to ensure accurate color registration.


Working power: AC220V50 / 60Hz
Power consumption: 300W
Drive method: motor
Speed: 1-5 m / min
Maximum pattern width: 380mm
Color diamond size: 2mm-7.5mm optional
Registration: 1-4 optional
Dimensions: 2500mm × 1000mm × 1000mm
Weight: 800Kg


Through continuous communication, adjustment and upgrading of the automatic brush drilling rig and customers, the performance is more stable and the brush drilling efficiency is higher.
1, the effective brush drilling quality and specification quality:
All specifications of domestic double-sided, Middle East, octagonal 1.5mm, 6 # can be produced;
2, Advantages of Jungang Automatic Brush Drilling Rig:
1. It has the characteristics of easy operation, fast brushing speed, high efficiency, and convenient maintenance;
2. The machine uses a single-phase 220V power supply, and the continuous power consumption is less than 3 degrees for 24 hours. It can effectively solve the dependence on skilled workers in the traditional manual brush drilling industry;
3. When the electromechanical joint operation is adopted, the work of multi-color hot drilling map can be efficiently completed, and the number of workers can be reduced, and the work efficiency of brush drilling can be improved;
Fully automatic drilling rig is designed according to the standard of hot drilling industry. It is produced according to the requirements of high-end technology, conforms to the principle of ergonomics, is easy to operate, reliable and durable. It is the first choice for professional hot drilling manufacturers.
3.Technical explanation of automatic brush drilling rig

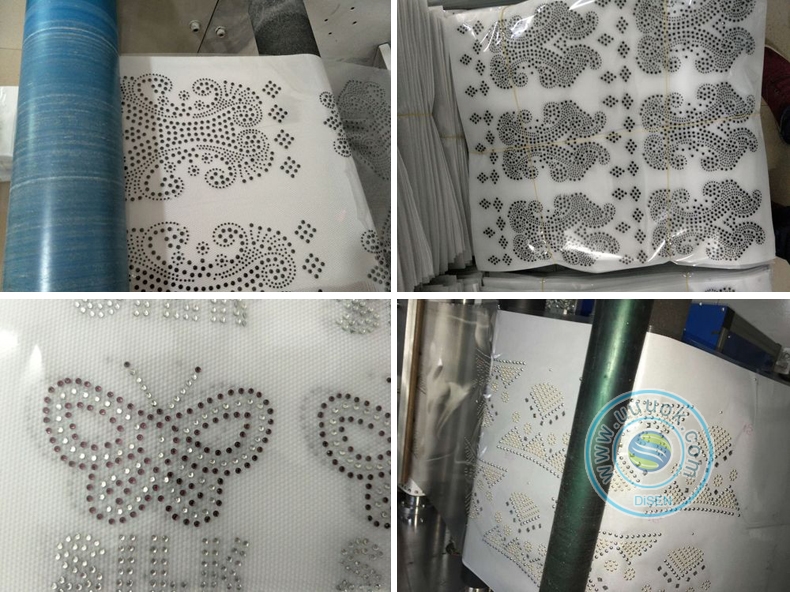

This machine realizes the multi-color registration of garments, diamonds, and paper, and all the manual work are removed. Automatic correction is performed, automatic pressure adjustment, full CNC counter, automatic vibration adjustment,
Automatic brush adjustment, automatic static elimination, automatic paper correction and automatic tension adjustment.

二轴刷钻机

三轴刷钻机

四轴刷钻机

刷钻规格要求：

最大尺寸：10×10mm；

最小尺寸：6#钻；

最大钻厚：<5mm;

外形长宽比：<3；

适用于各种国产及进口钻饰。
