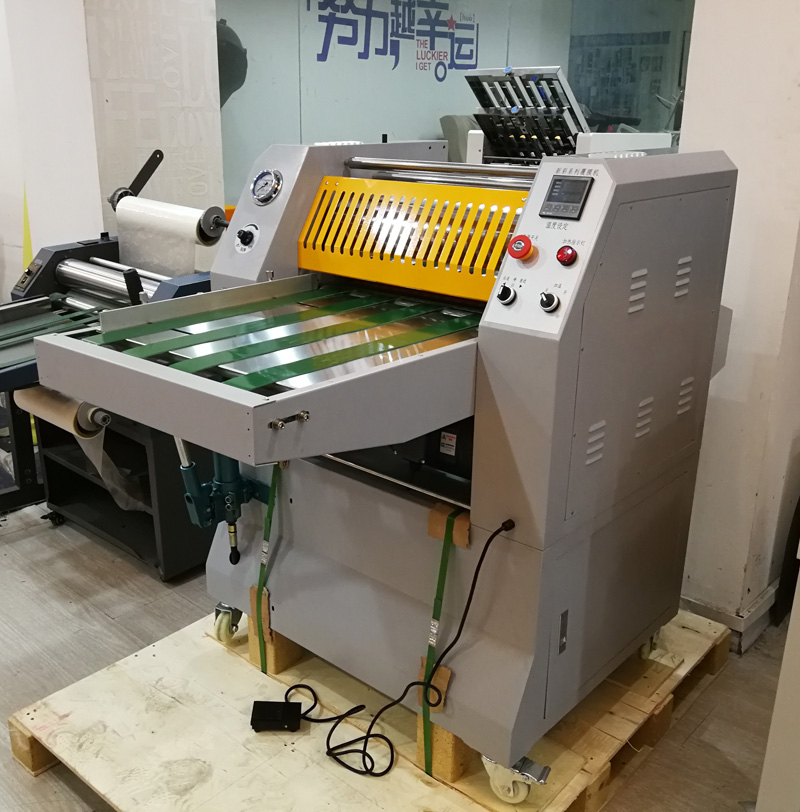

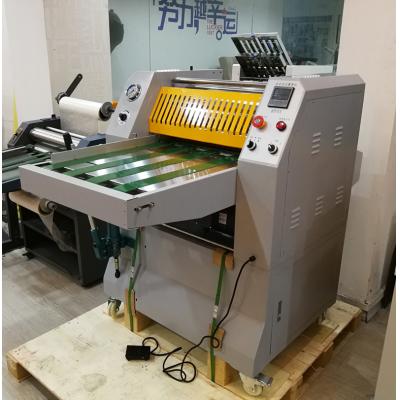

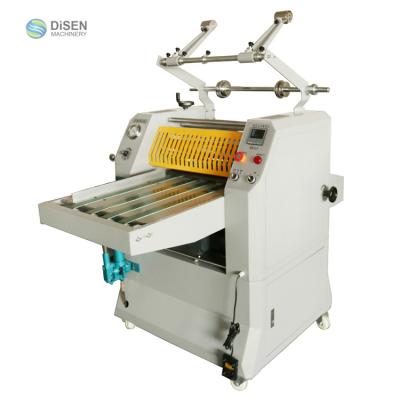

FM-520B/720B Hydraulic heavy laminating machine

This equipment adopts imported motor, Korean frequency converter, electric and hydraulic originals all adopt famous domestic brands, and they are easy to replace and durable.
Hydraulically lifts up the drum, easy to operate, and the pressure can be

  • Model DSO-XCFM-520B/720B
  • Contact us Mobile Buy

More products

Product Name : FM-520B/720B Hydraulic heavy laminating machine



最大覆膜宽度:480mm
最大覆膜厚度:6mm
最快覆膜速度:0-12000mm/min
最高覆膜温度:160℃
显示器:LED显示器
驱动电机:交流电机
电源:220V/50Hz
加热功率:4000W
电机功率:400W
包装尺寸(长×宽×高):800×1200×1200mm
重量:240kg
钢辊直径:200mm
模芯规格:3寸
本设备采用进口电机,韩国变频器,电气和液压原件都采用国内著名品牌,更换方便经久耐用。
液压抬升滚筒,操作方便,压力可调符合你多重需求。
有防卷曲功能,适合各种纸张.本机带有割刀和米线刀方便拉断,无需修边。
使用3寸芯(7.6厘米)大卷膜,减少更换时间。
覆膜钢辊采用镀硬铬工艺,镜面抛光加工,适用高要求覆膜。
本设备所有配件一年包换,整机保修一年(人为除外)。
Maximum Lamination width:480mm
Maximum Lamination thickness:6mm
Lamination speed:0-12000mm/min
Highest Lamination temperature:160℃
Display:LED
Drive motor:AC
power supply:220V/50Hz
heating power:4000W
Motor Power:400W
Machine size (length × width × height):800×1200×1200mm
weight:240kg
Steel roller diameter:200mm
Core specifications:3 inches
This equipment adopts imported motor, Korean frequency converter, electric and hydraulic originals all adopt famous domestic brands, and they are easy to replace and durable.

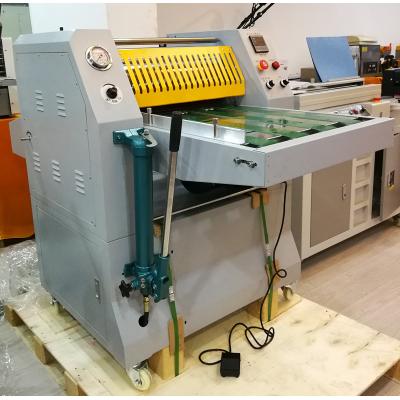

Hydraulically lifts up the drum, easy to operate, and the pressure can be adjusted to meet your multiple needs.
With anti-curling function, suitable for all kinds of paper. The machine is easy to pull off with the knife and noodle knife without trimming.
Use 3-inch core (7.6 cm) large roll film to reduce replacement time.

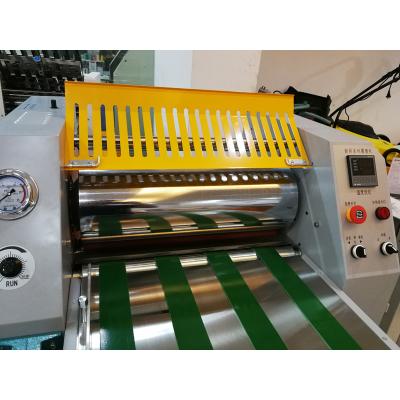

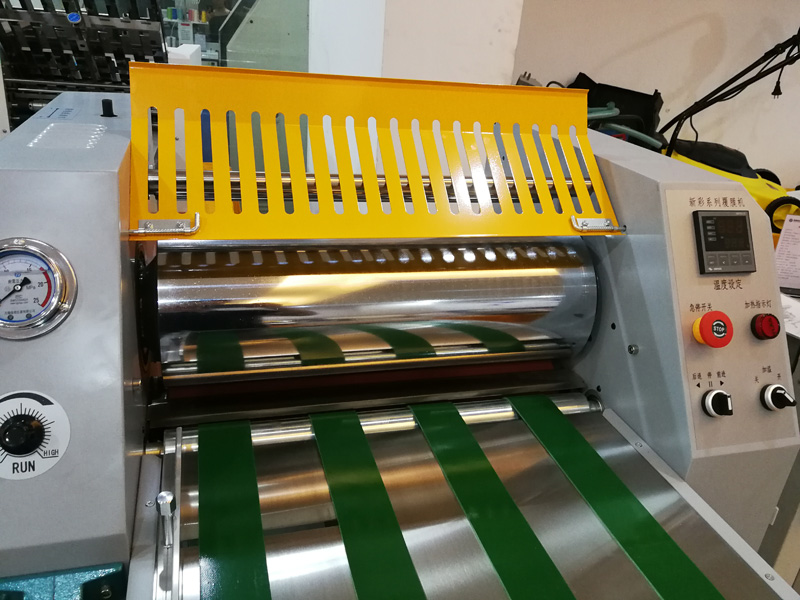

Coated steel rolls are hard chrome plated and mirror polished for high demands.
All accessories of this equipment are replaced one year, and the whole machine is guaranteed for one year (except for man-made ones).
