52 Inches Computerized Flat Knitting Machine

Features 1. The triangular structure is optimized and the motor is used, which greatly improves the needle turning speed. 2. The machine head is small and can rotate quickly, which improves the working efficiency. 3. The yarn storage device is used to improve the flatness of the fabric. 4. The needle plate adopts the milling groove method, the structure is simple, and the needle bed can work continuously and efficiently after heat treatment.


Model	DS-1-52
Gauge	5G,6G,7G,8G,9G,10G,12G,13G,14G,15G,16G
Knitting System	Single System,Single Carriage
Knitting Width	44 inches, 52 inches, 60 inches, 80 inches, 100 inches
Knitting Speed	Max 1.2m/s
Knitting Function	Tranfer tuck,miss,jacquard,intarsia, hide or apparent shaping
Stitch Density	Stitch system controlled by stepping motor, 32 section stitch selectable, adjustable scope supported by subdivision technology; 0-650.
Racking	Controlled by AC servo motor, racking within 2 inches and with fine adjusting function.
Drive System	Synchronous belt drive, AC servo system.
Needle Selection	Controlled by computer, electric magnet needle choose system with high efficiency
Yarn Carrier	1x8 yarn carriers on each side of 4 guide rails, shiftable on any needle position.
Take Down Roller	Programmed instruction controlled by stepping motor, 32 section levels selection adjustable area; 0-100
Protection System	The machine will automatically alarm if yarn breaking, float yarn, rewind,end of knitting, fail of racking, needle breakage and error programming occur etc.
Control System	1, Adopt LCD screen, input device; USB, system memory 256MB, a great amount of design files can be stored. 2,Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running. 3, Design system is visual and easy to understand and up grad. 4, Multi language version,there are chinese, english etc.
Power	220v, single-phase, have memorizing function at the power-off moment.
Package Size	2.370.851.83m
Net weight	550kg
Gross Weight	650kg

">12gg 1.5gg 5g 12g Loom Book Bed Knit Collar Jack Tshirt Computerized Flat Cashme···

Rhinestone Shaking Machine

Large Format Automatic Rhinestone Shaking Fabric 2colour Hotfix Transfer Sheet C···

A3 UV DTF Printer with 1pcs DX7 printhead

A3 UV DTF Printer Machine Features 1. The X-axis uses a Leisai servo motor + Hiwin silent slide rail to ensure stable printing accuracy. 2. The platform uses high-strength aluminum castings, which remain unchanged after long-term use. 3.Intelligent printing system, automatic pause when paper is out. 4. The equipment occupies a small area and can be placed on the desktop for printing. 5. The bottom plate of the trolley has an additional heating function to reduce the impact caused by the environment.

Model	DS-300
Number of print heads	1PCS
Nozzle Model	EPSON 3200HD/DX7
Print speed	Draft mode 5㎡/h Production mode 4㎡/h High-precision mode 3㎡/h
Data Transfer	Gigabit Ethernet
Ink Color	K.C.M.YW.V
Rated power	800W
Iinput voltage	AC110V/220V,50Hz/60Hz
Typesetting software	Jiatai Ruiyin Pp optional
Motherboard	Hoson Board
Print wide format	300mm
Equipment Net Weight	62KG
Device size	L880xW700xH400(mm)
Environmental requirements	Temperature 20-48,humidity 50-60


">A3 High-Resolution UV DTF Printer Automatic Roll-to-Roll Inkjet for Acrylic Glas···

A3 DTF Printer

High-Quality Print Output: Produces sharp and vivid prints with superior resolution.

A3 Size Printing: Handles large format designs for various apparel and materials.

Durable Design: Built to withstand industrial use with robust construction.

User-Friendly Interface: Easy-to-navigate control panel for efficient operation.

Wide Compatibility: Works with a variety of media types including DTF film.



">Factory Delivery DTF Machine Film Printer Heat Transfer Printing T-Shirt Printin···

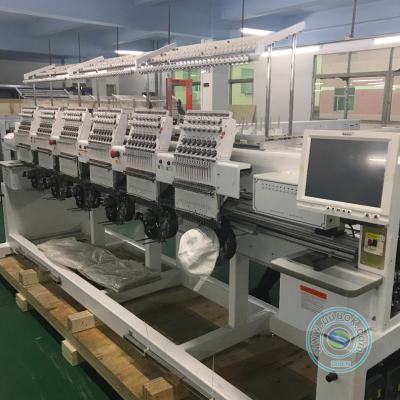

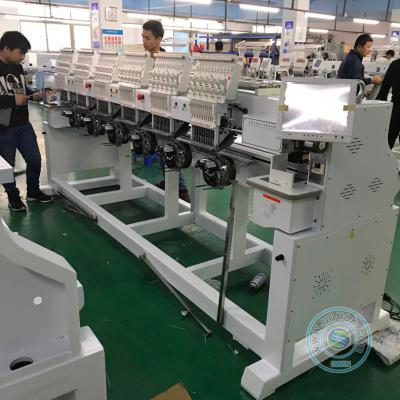

Six head 9 needles flat embroidery machine

Type:Flat Embroidery Machine

Power:220V OR 380V

Maximum Speed:1000 RPM

Head Interval:400 MM

Embroidery Area:400*800 MM

Computer:DAHAO 528 8 INCH

Thread trimming:Trimming

HOOK:JAPANESE OR KOREAN

Belt:Italy Belt

Needle:9 NEEDLES

Language:9 Languages

WORKING AREA	400*800MM	CONTROL SYSTEM	Dahao 528
FLAT HEAD	High Speed head	HEAD DRIVED BY	Jump Solenoid
FRAMES	Flat emboridery
OTHER SPECIFICATION	Trimmer, Semi Auto Lubrication System, Suspended Frames
OPTIONAL DEVICES	Sequin device, Cording Device,Beads Device,Cutting Device Auto Bobbin Changing Device
FUNCTION & APPLICATION	High Speed and Intelligent Embroidery Machines are applied in high end garments,fabric and home products industry. This model is equipped with automatic feeding and clipping frames, more suit for embroidering on Ribbon, Sling &Belts. We are offering specialized intelligent machines and embroidery solution for different industries ,welcome to discuss with us in more details regarding your embroidery requirement!
WE PRODUCE MORE MODELS	All Type of High Speed Embroidery Machine e.g 912 915 923 Many Types of customized Embroidery Machine

">We are offering specialized intelligent machines and embroidery solution for dif···

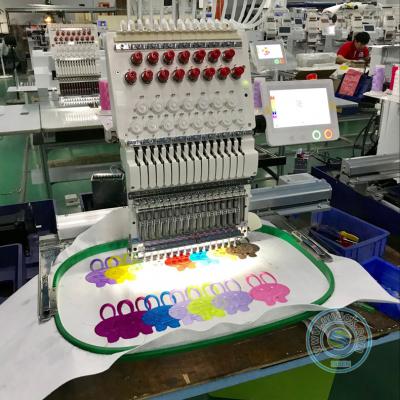

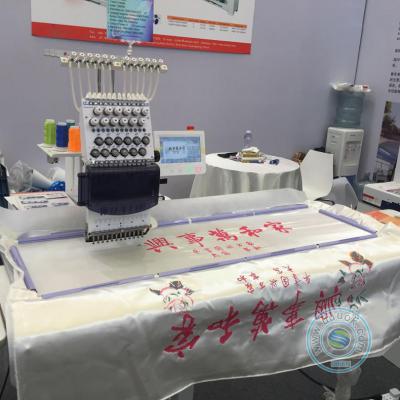

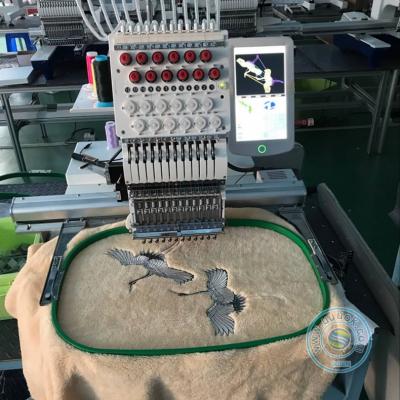

500*800mm Single head embroidery machine

Large Embroidery Area: 500*800mm for detailed customization.

High Efficiency: Operates at 1200 RPM for quick embroidery work.

Customizable: Supports various styles including cap, shirt, flat, and 3D.

User-Friendly: Includes instructional video for easy setup and operation.

Professional Packing: Delivered in a wooden case for secure transportation.

Smart Automation: Includes automatic thread trimming, automatic color change, and thread break detection to reduce manual labor and errors.

Connectivity: Supports Wi-Fi, Ethernet, and USB for seamless design transfers from PC or mobile devices.

Compact & Portable: Features a smaller sewing arm for easier embroidery on small items like pockets and sleeves.

Expandable Features: Supports optional devices for sequins, cording, beads, and boring to offer unique garment finishes.

Industrial Build: Heavy-duty steel stand with wheels ensures stability during high-speed operation and easy mobility.


">Computerised Digital Industrial Sewing T-shirt logo Maker Brand Stock Nigeria Pr···

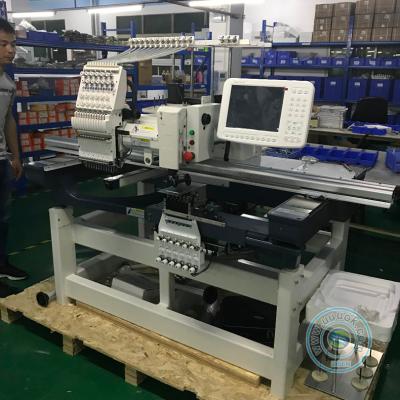

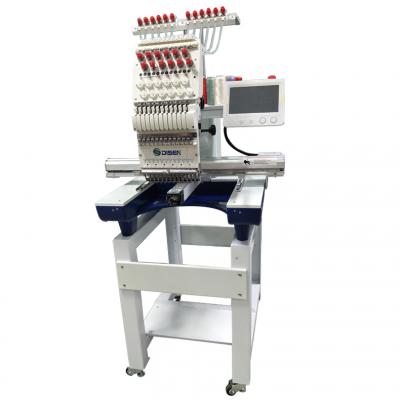

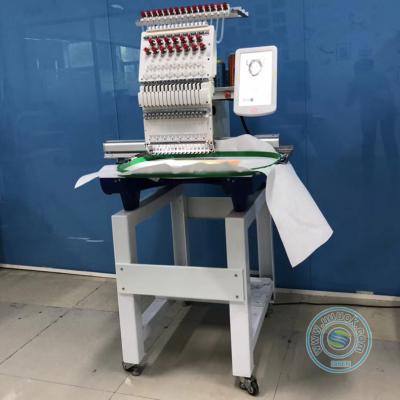

350*500mm Single head embroidery machine

MODEL: 1201 Single Head 12 Needles Embroidery Machine

1.Suitable for flat embroidery, cap embroidery and finished garments embroidery, T-shirt embroidery, logo embroidery etc.

2. Embroidery area: 500*350mm

3. Controller: 10" Touch Screen Dahao A15 System,User-Friendly Interface

4. High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump.

5. Automatic thread trimmer

6. The running speed:100- 1200rpm

7. 280 degree Wide cap frame unit

8. Automatic color change and thread break detection

9. Start, Stop and emergency Stop Button

10.Design Tracing Available

11.One-Step Tracing

12. 10'' touch screen display control pannel, showing real time stitching

13. Memory size: 500 Patterns,200 Million stitches

14. Computer Reads Multiple Design Formats.Such As DST.DSB And More.

15. USB port

16.Networkable And Wi-Fi capable

17. Control system can be updated easily

18. Multi-languages:, Chinese, English, Spanish, Turkish, Russian.. French, Portuguese, Arabic,Thai, Italian,German, Dutch,Polish

19. Electricity: 110V/60Hz or 220V/50Hz Selfadaptable worldwide available

20.Equip With Laser Positioning

21.Woodencase Packing.

22.Machine Size: 1090x750x1530MM Packing Size:850x835x900mm

23.Net Weight:150KG Gross Weight:180KG


">Disen Single Head Flat Cap Small Petal Computer Embroidery Machine s Best Seller···

300*400mm Single head embroidery machine

Factory Best Price Single Head 9 12 15 Needles Tshirt Hat Cap Name Logos Small F···

Case 5

Case 4

Case 3

Case 2

Advantage

CUSTOMIZATION SCOPE

We can provide you with customized services, including machine color, headage, embroidery area, needles number, embroidery function (Bead embroidery device，Sequin embroidery device，Simple cording embroidery device，Simple towel device，Hole carving knife，Optical fiber laser ...),Regardless of past,present,or furture,DISEN always is your best choice.

ONE-STOP SERVICE

Disen has established a great brand ,We have 28 years of experience , We have professional original after-sales personnel to provide one-to-one installation, after-sales, and teaching services，the most professional after-sales service to solve any technical problems.

INSTALLATION TEACHING

We have a professional technical team, in order to meet the learning needs of different customers, we provide a variety of machine installation teaching methods. Including face-to-face live teaching, detailed video tutorials, machine operation manuals and more. Customers can choose the most suitable learning method according to their own situation.

AFTER SALES

All the customers who have purchased Disen Machinery products, we will provide you with lifelong after-sales service. Including product installation, use of teaching and so on. Products within 12 quality shelf life, such as non-human causes of product quality problems, we will provide you with free repair or replacement services.

CUSTOMIZED SERVICE

The company fully understands the unique needs and business characteristics of each customer and therefore fully supports customized services. Whether it is the content of the service, the process, the individual requirements of the product, or the form and time of delivery, it can be flexibly adjusted according to the specific requirements of customers.

PROFESSIONAL TEAM

We have rich production experience, committed to the development of clothing equipment, we provide embroidery machine, DTF Printer, Rhinestone machine, sewing machine etc. Through advanced testing equipment and professional testing personnel, to ensure that products and services meet the highest quality standards.

ABOUT US

Guangzhou Disen Founded in 1994,Disen has specialized in the R&D and manufacturing of embroidery machines, earning multiple patents along the way. Our lineup spans single-head and multi-head embroidery machines and OEM accessories—built for precision, reliability, and a remarkably easy user experience.We insist on continuous improvement in management and engineering, with a complete quality ma...

Quality Management System ISO 9001, CE
High-tech enterprises, SGS certificate
PATENT: sand filter, self cleaning filter

Project Completed

Happy Clients

products

Awards Received

NEWS

2026-01-18

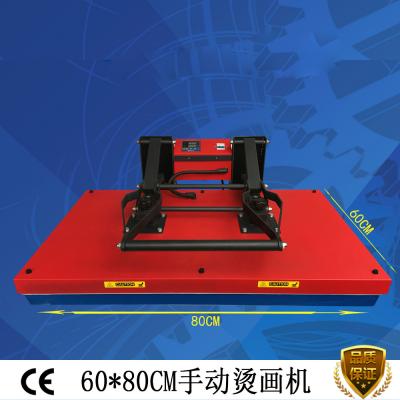

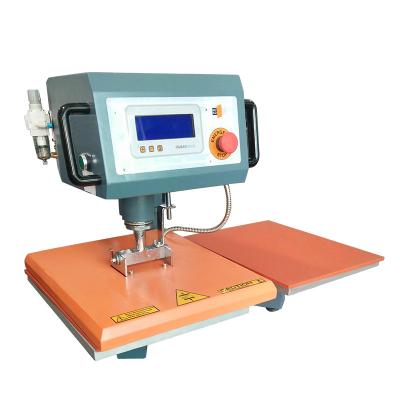

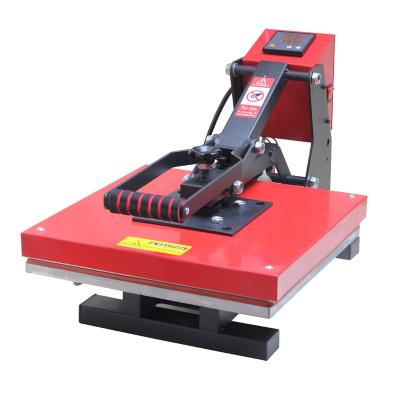

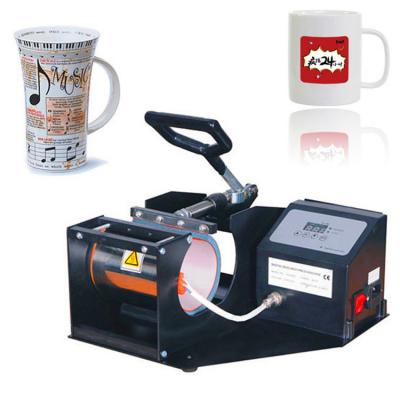

The Heat press Machine collection, you can find more styles at Disen
